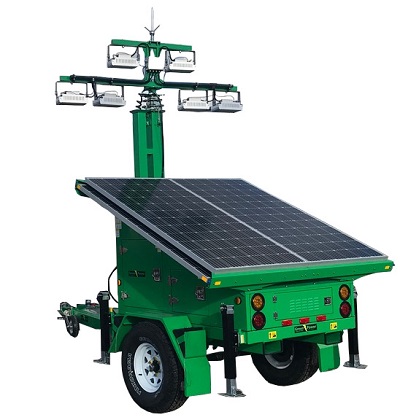

Tower lighting with drive source solar panel and rechargeable batteries
Tower lighting with drive source solar panel and rechargeable batteries
An illumination tower that further protects the environment and provides economic embarrassment.
This power source is now built on a smaller trailer that can easily be moved by passenger car or smaller truck.
The trailer is an unbraked and may be driven for 30km, includes support legs.
Solar panels that are pushed out sideways, which doubles the capacity.
Features
4x330W solar panels
Light output 96000lm
8x150Ah GEL / AGM batteries DC24V system
6x100W LED light
7.5m electrically adjustable mast
Driving time: Continuous discharge time of 24 hours from when fully charged
Charge and discharge time rate: 13:24
Wind speed calculated: 100kph
Protection level: IP65
System voltage: 24V DC
Control panel can be easily selected in optional operating options.
Twilight relay which is controlled via the charging voltage of the solar cells is indicated 5V (this value is adjustable) has a delay time of 10min (this value is adjustable)
Applications
Road works, gravel pit, construction projects, sports activities, music plays, military applications
Benefits
Environmentally friendly power source, no noise pollution, no fuel cost, no gas pollution, no particle emission, low maintenance cost
An illumination tower that further protects the environment and provides economic embarrassment.
This power source is now built on a smaller trailer that can easily be moved by passenger car or smaller truck.
The trailer is an unbraked and may be driven for 30km, includes support legs.
Solar panels that are pushed out sideways, which doubles the capacity.
Features
4x330W solar panels
Light output 96000lm
8x150Ah GEL / AGM batteries DC24V system
6x100W LED light
7.5m electrically adjustable mast
Driving time: Continuous discharge time of 24 hours from when fully charged
Charge and discharge time rate: 13:24
Wind speed calculated: 100kph
Protection level: IP65
System voltage: 24V DC
Control panel can be easily selected in optional operating options.
Twilight relay which is controlled via the charging voltage of the solar cells is indicated 5V (this value is adjustable) has a delay time of 10min (this value is adjustable)
Applications
Road works, gravel pit, construction projects, sports activities, music plays, military applications
Benefits
Environmentally friendly power source, no noise pollution, no fuel cost, no gas pollution, no particle emission, low maintenance cost
| Dimension and weight GPFHS600A GREENPOWER | |
| Size(Not include mast) | 4900x2050x2280 mm |
| Weight | 1400 kg |
| Solar panel and battery | |
| Solar panel | 330Wx4 monokristallin silikon (ET-sol) |
| Battery | 150Ahx8 GEL / AGM batteri (Trojan) |
| AC charging pocket | |
| Charge the battery from AC | Included |
| Lamp and mast | |
| Lamp | LED outdoor lamp with Philips chip |
| Power | 100Wx6 |
| Total lumens | 96000lm |
| Mast height | 7.5m |
| Mast type | Electrical |
| Trailer details | |
| Axle | Single |
| Tire | Cooper A/T R15 |
| Drawbar | A-type drawbar with grating plate |
| Brake system | Bump brake |
| Shock absorber | Double eye leaf spring |
| Tail lamp | ADR Standard |
| Outrigger | 3175kg jack and high strength square tube |
| Fire extinguisher | SAI/EN3/ CE-certifiering |
| Lightning protection | Included |
| Electrical parts | |
| Solar controller | Circuit breakers, relay. All electrical parts have cable routing. |
