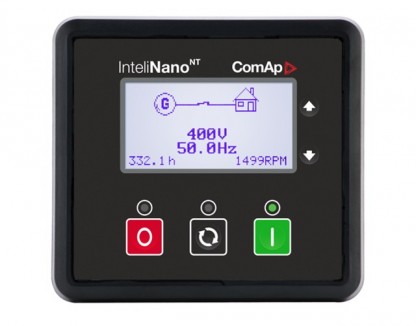

InteliNano NT Plus Genset controller




InteliNano NT Plus Genset controller
Supreme model from InteliNano NT family. AMF and MRS controller with current measurement and support of EFI engine.

Features:
  • AMF and MRS controller in one model.
  • 1/3 Phase generator voltage measurement (3/3 phase when used as MRS controller).
  • 1 Phase generator current measurement.
  • 3 Phase mains voltage measurement.
  • Connection type and voltage auto detect.
  • Various generator and engine protections.
  • Biggest LCD screen in its class.
  • Icon menu, no text.
  • Automatic or manual MCB and GCB control.
  • "Zero" power consumption mode.
  • Battery voltage, Service time and Running hours indication.
  • All setpoints and I/O's configurable via front panel.
  • Ability to catch up on running engine (for manual engine start).
  • Light Tower mode supported.
  • Event log (10 events).
  • Up to 3 analog inputs (shared with binary inputs).
  • COM terminal for analog measurement.
  • Up to 6 binary inputs (1 binary input is shared with binary output).
  • 2 high side - high current outputs.
  • 4 high side binary outputs.
  • D+ pre-excitation terminal.
  • ECU support (CAN J1939).
  • USB one-cord power supply and programing.
  • License free PC configuration software (NanoEdit).
  • Standard cut-out dimension 96x96.
  • Outside dimension 110x100.
  • IP 65.
  • UL certification pending.
Technical Data
Power Supply Range  6 – 36 VDC
Operating temperature -20°C to 70°C
Number of binary inputs up to 6
Total number of binary outputs up to 6*
Number of low current binary outputs 4
Number of high current binary outputs 2
Total output current 10A – long term
15A – short term
No. of Analog inputs up to 3
Measurement Inputs 3ph generator voltage, 3ph mains voltage
Dimensions (WxHxD) 118x108x40 mm

    » IN-NT-Plus-2.0.1.x-Reference Guide

    » InteliNano NT Plus Schematic Diagram

    • InteliNano NT Plus Genset controller
      Art. nr.
      GSC05
      InteliNano NT Plus Genset controller
