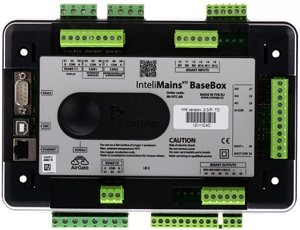

InteliMains NTC BaseBox Gen-Set Controller

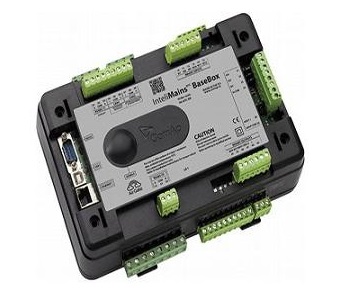

InteliMains NTC BaseBox
Mains Supervision Controller Base Unit with Extended Communications for Use with Detachable Colour Display

Features
For multiple up to 31 gen-sets operating in parallel to mains (or isolated parallel)
To be used in conjunction with detachable colour displays InteliVision 5, InteliVision 5 RD or InteliVision 8
Many different power control modes available
System Baseload with limited export or minimal import
Import/Export power control of gen-set group
Temperature of the system by power control
Dynamic changes of required system power via analog input
Reverse synchronization of the loaded gen-set group to mains
Forward synchronization of Mains to gen-set group
Coupling of several synchronized mains to a common bus
Allows to build complex applications with more mains incomers, bus-tie breakers, load management etc.
AMF function, Peak shaving
Mains measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAh
Bus measurement: U, Hz (kW, kVAr, PF - via CAN from gen-set group)
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Inputs and outputs configurable for various customer needs
12 Binary inputs
12 Binary outputs
3 Analog inputs
1 Analog output
Bipolar binary outputs - possibility to use BO as High or Low side switch
Many communication options – easy remote supervising and servicing
1× RS232 / 1× RS485 interface with Modbus protocol support
Analog / GSM / ISDN / CDMA modem communication support
SMS messages
RS485 converter is isolated (one RS485 Display-dedicated port)
AirGate support
Ethernet connection (RJ45)
USB 2.0 slave interface
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values
RTC
Statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount of the controller
Customized firmware solution
Possible firmware applications:
MCB application (controller is controlling Mains Circuit Breaker and provides import/export to Mains functions and other related features)
MGCB application (controller is controlling Mains Circuit Breaker and Master Gen-set Circuit Breaker and provides import/export to Mains functions and other related features)
BTB application (controller is controlling Bus Tie Breaker and provides enhanced options for breaker control dependent on various user settings and left and right bus parameters, full support of control groups is included)
FDR application (contoller is controlling Load Circuit Breaker and provides wide variety of functions related to load management)


InteliMains NTC BaseBox
Power supply range 8-36 VDC
Operating temperature -40°C to +80°C
Storage temperature -40°C to +80°C
Voltage Measurement inputs 3ph-n Mains voltage
3ph-n Bus voltage
Voltage Measurement range 110V/277V
Current Measurement inputs 3ph Mains current
1ph Bus current
Current Measurement range 1A/5A
Binary inputs Number 12 non-isolated
Binary outputs Number 12 non-isolated
Analog inputs Number 3 non-isolated
Number of Analog outputs 1
Communication
RS232 Direct/Modbus, non-isolated
RS485 Direct/Modbus, isolated
Display port non-isolated RS485, only terminal
connection
USB port Direct, isolated
Ethernet port LAN/Internet, Modbus TCP, SNMP, WebServer, Airgate
CAN1 External modules 250kbps, max 200m
Isolated
CAN2 Intercontroller and comm extensions
250/50kbps, max 200/1000m Isolated

    » InteliMains NTC BaseBox Datasheet Productleaflet

    » InteliGen NTC BaseBox Function/controller Leaflet

    • InteliMains NTC BaseBox Gen-Set Controller
      Art. nr.
      GSC36
      InteliMains NTC BaseBox Gen-Set Controller
