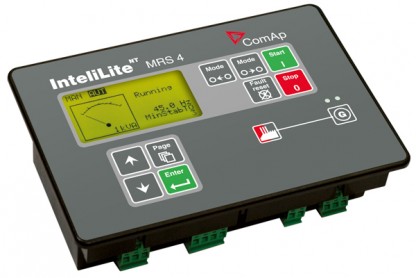

InteliLite NT MRS 4 Gen-Set Controller




InteliLite NT MRS 4 Gen-Set Controller
Compact gen-set controller for single operating genset

Features
Manual and remote start (MRS) applications
Easy to setup
Wide gen-set monitoring and protection
Outstanding EFI engine support with diagnostic messages in plain text via J1939
Running hours event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in extension modules capability
Automatic SMS on alarm or event & gen-set control over SMS*
Automatic GCB control
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs
4 binary inputs
4 binary outputs

* Plug-in module required

Inputs/Outputs overview
Model: IL-NT MRS4
BIN: 4+8*
BOUT: 4+8*
AI: 3
AOUT: 8*
COM1: Y*
COM2:Y*
CAN: Y
RPM: N
Gen.Voltage: Y
Mains Voltage: N
Gen.Current:  Y

Note:
* With optional plug-in module
Y -Available
N -Not available

InteliLite NT MRS 4 Controller/Function

Voltage supply 8-36V DC
Operating temperature IL-NT -20 to 70°C
Operating temperature IL-NT LT# -40 to 70°C
Nominal frequency 50-60 Hz
Nominal input current (from CT) 5 A
Number of Binary inputs 4
Number of Binary outputs 4
Not electrically separated
Number of inputs
3
Galvanically separated
Maximal CAN bus length
200m
Dimensions 180x120x55mm
Weight 450g


» InteliLite NT MRS4 Product LeafLet
  • InteliLite NT MRS 4 Gen-Set Controller
    Art. nr.
    GSC21
    InteliLite NT MRS 4 Gen-Set Controller
