InteliLite NT MRS 16 - Manual Remote Start (MRS) Gen-set Controller
Features
Compact gen-set controller for single operating genset
Manual and remote start (MRS) applications
Full gen-set monitoring and protection
Outstanding EFI engine support with diagnostic messages in plain text via J1939
Detailed RTC event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in and CAN bus extension modules capability
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & gen-set control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection and Total fuel consumption monitoring
Earth fault current protection*
Alternative switchable configuration
Automatic and manual GCB control
Magnetic pickup input
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs
6 binary inputs and 6 binary output
* Plug-in module required
Low temperature version is availible for operation from -40°C to +70°C

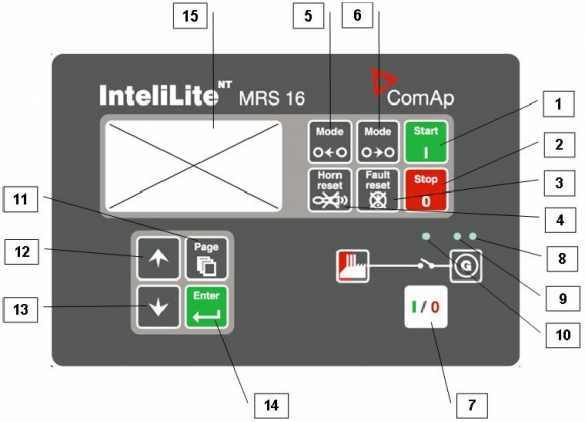

Operator Interface MRS
GEN-SET CONTROL BUTTONS
|
POSITION |
BUTTON |
DESCRIPTION |
| 1 |  |
START button. Works in MAN mode only. Press this button to initiate the start sequence of the engine. |
|
2 |
|
STOP button. Works in MAN mode only. Press this button to initiate the stop sequence of the gen-set. Repeated pressing or holding the button for more than 2s will cancel current phase of stop sequence (like ramping the power down or cooling) and next phase will continue. |
|
3 |
|
FAULT RESET button. Use this button to acknowledge alarms and deactivate the horn output. Inactive alarms will disappear immediately and status of active alarms will be changed to "confirmed" so they will disappear as soon as their reasons dismiss. |
|
4 |
|
HORN RESET button. Use this button to deactivate the horn output without acknowledging the alarms. |
|
5 |
|
MODE LEFT button. Use this button to change the mode. The button works only if the main screen with the indicator of currently selected mode is displayed. |
|
6 |
|
MODE RIGHT button. Use this button to change the mode. The button works only if the main screen with the indicator of currently selected mode is displayed. |
|
7 |
|
GCB button. Works in MAN mode only. Press this button to open or close the GCB manually. Note that certain conditions must be valid otherwise GCB closing is blocked. |
GEN-SET OPERATION INDICATORS
|
POSITION |
INDICATOR DESCRIPTION |
|
8 |
Gen-set failure. Red LED starts flashing when gen-set failure occurs. After FAULT RESET button is pressed, goes to steady light (if an alarm is still active) or is off (if no alarm is active). |
|
9 |
Gen-set voltage OK. Green LED is on if the generator voltage is present and within limits. NOTE: The limits for the generator voltage and frequency are given by setpoints in the Gener Protect group. |
|
10 |
GCB ON. Green LED is on, if GCB is closed. It is driven by GCB CLOSE/OPEN output (MRS 3/4/10/15) or by GCB feedback signal (MRS 11/16). |
DISPLAY AND CONTROL BUTTONS
| POSITION | BUTTON | DESCRIPTION |
|
11 |
|
PAGE button. Use this button to switch over display pages. See Display Screens and Pages Structure chapter below this table for more details. |
|
12 |
|
UP button. Use this button to move up or increase a value. |
|
13 |
|
DOWN button. Use this button to move down or decrease a value. |
|
14 |
|
ENTER button. Use this button to finish editing a setpoint or moving right in the history page. |
|
15 |
Graphic B/W display, 128x64 pixels |
