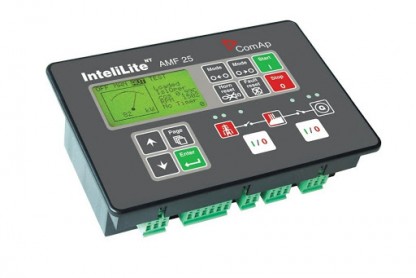

InteliLite NT AMF 25 Gen-Set Controller




InteliLite NT AMF 25 Gen-Set Controller
InteliLite AMF25 and InteliLite AMF25 are new integrated controllers for gen-sets operating in single standby mode.

They meet all possible requirements for AMF applications, including modem control, user configuration and full gen-set monitoring and protection.

    Description:

    • InteliLite controller are equipped with a powerful graphic display. Ioons, symbols and bar graphs for intuitive operation together with high functionality set new standards in gen-set control.
    • Special low temperature (IL-AMF 20-LT or IL AMF 25-LT) version is also available, allowing the display to work up to -300C.

    Features:
    Support of engines equipped with electronic control unit (J1939 interface).
    Comprehensive diagnostic messages; SPN/FMI codes; KWP2000 support.
    Automatic or manual start/stop of the gen-set. Push buttons for simple control, lamp test
    Graphic back-lit LCD display 128x64 pixels 6 LED indicators
    Parameters adjustable vis keyboard or PC
    Mains measurements (50/60 Hz): U1-U3, I1-I3, Hz, kW,kVA, kWh
    Selectable protections alarm/shutdown
    Compact gen-set controller for single genset operating in standby or prime power modes
    Full gen-set monitoring and protection
    Outstanding EFI engine support with diagnostic messages in plain text via J1939
    Detailed event and performance log with time and date
    Multiple languages (user changeable) in controller, even more in installation suite
    Plug-in and CAN bus extension modules capability
    WebSupervisor and AirGate support*
    Automatic SMS on alarm or event & gen-set control over SMS*
    On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
    Fuel theft protection and Total fuel consumption monitoring
    Earth fault current protection*
    Alternative switchable configuration
    Dual mutual stand-by (Dual AMF) support
    Supports prime power (MRS) applications
    Automatic and manual GCB and MCB control
    Magnetic pickup input
    D+ preexcitation terminal
    True RMS measurement
    3 phase power measurement of gen-set and mains incl. kWh
    3 configurable analog inputs
    7 binary inputs
    7 binary outputs
    * Plug-in module required
    Low temperature version is availible for operation from -40°C to +70°C

    3 phase generator protections:

    • Over-/under voltage
    • Over-/under frequency
    •  Current/voltage asymmetry
    •  Over current/ overload

    3 phase AMF function:
    over-/under frequency, over-/under voltage , voltage asymmetry , configurable analog inputs Battery voltage, engine speed(pick-up) measurement , Configurable programmable binary inputs and outputs Warm-up and cooling functions , Generator C.B. and Mains C.B. control with feedback and return timer RS232 interface (AT-LINK CONV cable is necessary for IL-AMF 20) Modem communication support (IL-AMF 25 only) Demensions 180x120mm(front panel) sealed to IP85

    Benefits:
    Less wiring and components, Integrated solution , Less engineering and programming.



    Technical Data

    Power Supply Range 8 – 36 VDC
    Operating temperature -40°C to 70°C
    Number of binary inputs 7
    Number of binary outputs 7
    Number of Analog Inputs 3
    Nominal input current (from CT) 5 A
    Maximal CAN bus length Maximal CAN bus length
    Dimension 180x120x55mm
    Weight 450g



    » InteliLite AMF 2.2 Reference Guide

    • InteliLite NT AMF 25 Gen-Set Controller
      Art. nr.
      GSC13
      InteliLite NT AMF 25 Gen-Set Controller
