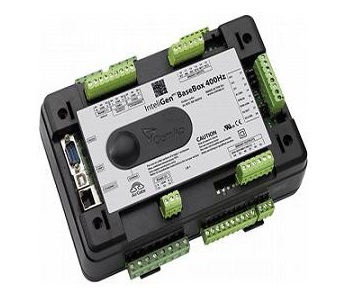

InteliGen NTC BaseBox 400Hz Gen-Set Controller

InteliGen NTC BaseBox 400Hz Gen-Set Controller

Ground Power Unit (GPU)
Comprehensive gen-set controller for land aircraft operating at 400 Hz frequency (GPU-Ground Power Units) To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8
Island operation, based on standard MINT application
Synchronizing and power management functions
Support of engines with ECU (Electronic Control Unit)
Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
Many communication options – easy remote supervising and servicing
Gen-set performance log for easy problem tracing
Automatic synchronizing and power control (via speed governor or ECU)
AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
Generator measurement: U, I, Hz, kW, kVA, kVA, PF, kWh, kVAhr
Mains measurement: U, I, Hz, kW, kVAr, PF
Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
Inputs and outputs configurable for various customer needs
Bipolar binary outputs - possibility to use BO as High or Low side switch
1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated
AirGate support
Ethernet connection (RJ45)
USB 2.0 slave interface
Controller redundancy
Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
Integrated PLC programmable functions
Integrated fixed and configurable protections
DIN-Rail mount
Customized firmware solution.
