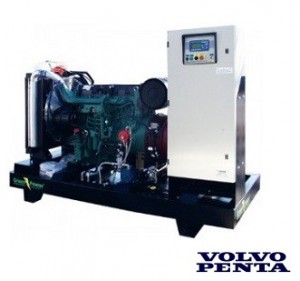

GREENPOWER Volvo Diesel Power generator 590kVA 472kW Open frame Manual starting




greenpower

Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.

Specification

  • Prime running Power (PRP) 590kVA 472kW, Emergency stand by power (ESP) 650kVA 520kw at 230/400v @50hz 1500rpm
  • High quality and reliable 6 cylinder, Volvo Penta diesel engine
  • Ideal for business applications
  • Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
  • Brushless alternator with AVR provides stable output
  • High temperature and low oil, water and fuel protection to protect against engine damage
  • Easy to use Digital Controller with Auto and Manual Start Options

» Click Here to view the Engine Datasheet

     » Click here to see Datasheet

    Technical Data
    Generator engine  VOLVO TAD 1642GE
    Type 4 cycle, water-cooled, diesel engine
    Direction of rotation (seen from flywheel) Counter-Clock wise
    No of cylinders 6
    Cylinders arrangement In-line
    Displacement 16.12 Liters
    Bore x Stroke 144 x 165 mm
    Prime running Power (PRP) 590kVA/472kW
    Emergency stand by power (ESP) 651kVA/521kW
    Speed 1500 rpm
    Motor power 674 hp/ 503kW
    75% fuel consumption 90 (l / h)
    Rated current 1000 Amps
    Rated voltage 400V/230V
    Landuse type of unit Low noise, Automation type
    Highest full load speed, 1500 rpm
    Low idle rpm 900 rpm
    Dimension (LxBxH) 3450 x 1550 x 2300 mm
    Moving 16120cc
    Noise level 69dB (A)
    Frequency 50Hz
    Weight 4490 Kg

     Standard equipment  Other configurations
    • Automatic fuse magnetothermal
    • Circuit breakers
    • Voltage meter
    • Frequency meter
    • Ampere meter
    • Hour meter
    • Emergency stop button
    • Safety device in the engine for:
      • high water temperature
      • low oil pressure
      • low fuel level
      • battery charging error
    • Models with different voltage
    • 60 Hz version

     Accessories

    •  Mobile device on wheels
    •  Type-approved trailer
    •  Autostart
    •  Automatic power switch ATS
    •  Automatic power switch and phase-out
    •  Parallel operation
    •  Fuse type
    •  Ground fault switch
    •  Extraction point with current transformers at zero point
    •  Radiostatic protection VDE 0875 curve N
    •  Electronic speed control
    •  Oil heater
    •  Engine heater
    •  Oil pump
    •  Automatic tanker from external tank
    •  Protective frame with lift hook
    •  Container unit
    •  Alternator voltage / frequency generator
    •  Fuel tank deployment
    •  Fuel level
    •  Alarm on all internet connection.
    •  GSM alarm monitoring
    •  Capable soundproofing 70dB down to 55dB
    •  Remote control
    •  Environmental Class STAGE III
    •  Disconnect 1-phase or 3-phase, respectively
    •  UPS system battery backup 1-phase and 3-phase
    Standard Genset Specifications
    Engine
    • Volvo heavy duty diesel engine
    • Six cylinder equipped with Water cooling
    • Electronic governor control system
    • Replaceable wet type cylinder liners
    • Replaceable fuel filter, oil filter and dry element air filter
    • Cooling radiator and fan
    • Fuel connection hoses and manual sump oil drain valve
    • Exhaust silencer
    • Maintenance free battery including rack and cables
    • Jacket water heater (as option)
    • Volvo Engine Manual
      Alternator
      • Brushless, single bearing system, 4 poles
      • Insulation class H with circuit breaker protection
      • Standard degree of protection IP 22
      • Self-exciting and self-regulating
      • Screen protected and drip proof
      • Close voltage regulation

      Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
