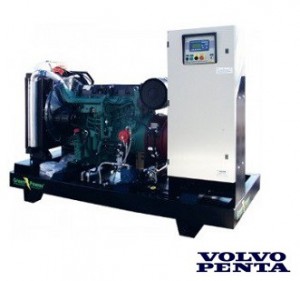

GREENPOWER Volvo Diesel Power generator 500kVA 400kW Open frame Automatic starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power(PRP) 400kW 500kVA, Emergency standby Power(ESP) 550kVA 440kW at 230/400v @50hz 1500rpm
- High quality and reliable 6 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 1641 GE |
| Type | 4 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinders arrangement | In-line |
| Displacement | 16.12 Liters |
| Bore x Stroke | 144 x 165 mm |
| Prime running Power(PRP) | 500kVA/400 kW |
| Emergency standby Power(ESP) | 556kVA/445 kW |
| Speed | 1500 rpm |
| Motor power | 576 hp/ 430kW |
| 75% fuel consumption | 78 (l / h) |
| Fuel tank | 400 liter |
| Rated current | 800 Amp |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low noise, Automation type |
| Highest full load speed | 1500 rpm |
| Low idle rpm | 900 rpm |
| Dimension (LxBxH) | 3450 x 1550 x 2300 mm |
| Moving | 16120cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Weight | 3930 Kg |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Engine
- Volvo heavy duty diesel engine
- Six cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
