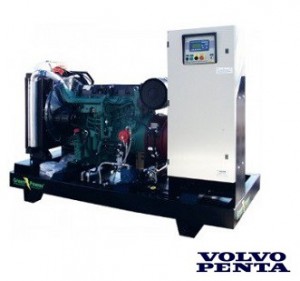

GREENPOWER Volvo Diesel Power generator 350kVA 280kW Open frame Manual starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Maximum 280kW 350kVA, Standby Power 385kVA 308kW at 230/400v @50hz 1500rpm
- High quality and reliable 6 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator engine | VOLVO TAD 1342GE |
| Type | 4 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinder arrangement | In-line |
| Displacement Liters | 12.78 |
| Bore x stroke | 131 x 158 mm |
| Prime Rated Power (PRP) | 350kVA/280 kW |
| Limted Time-Running Power(LTP) | 387kVA/310 kW |
| Speed | 1500 rpm |
| Motor power | 406 hp/ 303kW |
| 75% consumption | 54 (l / h) |
| Rated current | 630 Amps |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low Noise, Automation Type |
| Highest full load speed, | 1500 rpm |
| Low idle rpm | 800-950 rpm |
| Dimension (LxBxH) | 2950 x 1550 x 2100 mm |
| Moving | 12780cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Weight | 3265 Kg |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Engine
- Volvo heavy duty diesel engine
- Six cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
