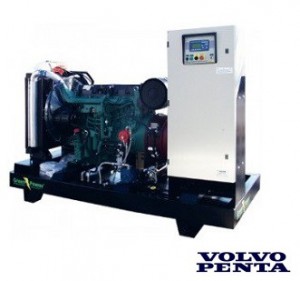

GREENPOWER Volvo Diesel Power generator 315kVA 252kW Open frame Manual starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime running Power (PRP) 315 kVA 252kW , Emergency stand by power (ESP)346kVA 276.8kW at 230/400v @50hz 1500rpm
- High quality and reliable 4 cylinder, Volvo Penta diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
| Technical Data | |
| Generator engine | VOLVO TAD 1341GE |
| Type | 4 cycle, water-cooled, diesel engine |
| Direction of rotation (seen from flywheel) | Counter-Clock wise |
| No of cylinders | 6 |
| Cylinders arrangement | In-line |
| Displacement | 12.78 Liters |
| Bore x Stroke | 131 x 158 mm |
| Prime running Power (PRP) | 315 kVA/252 kW |
| Emergency stand by power (ESP) | 347kVA/278 kW |
| Speed | 1500 rpm |
| Motor power | 369hp / 275kW |
| Rated current | 630 Amps |
| Rated voltage | 400V/230V |
| Landuse type of unit | Low Noise, Automation Type |
| Engine power, 1500 rpm | 89 kW |
| 75% fuel consumption | 49 (l / h) |
| Fuel tank | 400 liter |
| Highest full load speed | 1500 rpm |
| Low idle rpm | 800-950 rpm |
| Dimension (LxBxH) | 2950 x 1550 x 2100 mm |
| Displacement | 12780 |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Weight | 3230 Kg |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
- Volvo heavy duty diesel engine
- SIx cylinder equipped with Water cooling
- Electronic governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Volvo Engine Manual
- Brushless, single bearing system, 4 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
