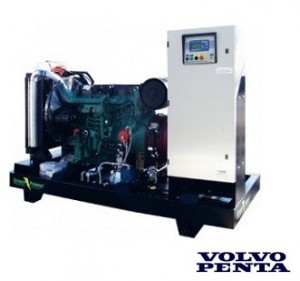

GREENPOWER Volvo Diesel Power generator 200kVA 160kW Open frame Manual starting




greenpower
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.

Specification

  • Prime running Power (PRP) 200kVA 160kW, Emergency stand by power (ESP) 220kVA 176kW  at 230/400v @50hz 1500rpm
  • High quality and reliable 6 cylinder, Volvo Penta diesel engine
  • Ideal for business applications
  • Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
  • Brushless alternator with AVR provides stable output
  • High temperature and low oil, water and fuel protection to protect against engine damage
  • Easy to use Digital Controller with Auto and Manual Start Options

» Click Here to view the Engine Datasheet

» Click here to see Datasheet

Technical Data
Generator Engine   VOLVO TAD 733GE
Type 4Cycle, water-cooled, diesel engine
Direction of rotation (seen from flywheel) Counter-Clock wise
No of Cylinders 6
Cylinders Arrangement Vertical In-line
Displacement 7.15 Liters
Bore x Stroke 108 x 130 mm
Prime running Power (PRP) 200 kVA/160 kW
Emergency stand by power (ESP) 224kVA/179 kW
75% consumption 33.7 (l / h)
Speed 1500 rpm
Motor power 236 hp/ 176kW
Fuel tank 250 l
Rated Current 400 Amps
Rated Voltage 400V/230V
Landuse Type of Unit Low Noise, Automation Type
Engine power, 1500 rpm 201 kW
Highest Full Load speed 1500 rpm
Low idle rpm 800-950 rpm
Dimension (LxBxH) 2800 x 1310 x 1800 mm
Moving 7150cc
Noise level 69dB (A)
Frequency 50Hz
Weight 2150 Kg

 Standard equipment  Other configurations
  • Automatic fuse magnetothermal
  • Circuit breakers
  • Voltage meter
  • Frequency meter
  • Ampere meter
  • Hour meter
  • Emergency stop button
  • Safety device in the engine for:
    • high water temperature
    • low oil pressure
    • low fuel level
    • battery charging error
  • Models with different voltage
  • 60 Hz version

 Accessories

  • Mobile device on wheels
  • Type-approved trailer
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with current transformers at zero point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine
  • Volvo heavy duty diesel engine
  • Six cylinder equipped with Water cooling
  • Electronic governor control system
  • Replaceable wet type cylinder liners
  • Replaceable fuel filter, oil filter and dry element air filter
  • Cooling radiator and fan
  • Fuel connection hoses and manual sump oil drain valve
  • Exhaust silencer
  • Maintenance free battery including rack and cables
  • Jacket water heater (as option)
  • Volvo Engine Manual

    Alternator

    • Brushless, single bearing system, 4 poles
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 22
    • Self-exciting and self-regulating
    • Screen protected and drip proof
    • Close voltage regulation

    Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.

      • GREENPOWER Volvo Diesel Power generator 200kVA 160kW Open frame Manual starting
        Art. nr.
        GP200VO
        GREENPOWER Volvo Diesel Power generator 200kVA 160kW Open frame Manual starting
        Write down the required equipment for quotation :
