  1. Greenpower
  2. GREENPOWER Volvo Diesel Power generator 100kVA 80kW Open frame Manual starting

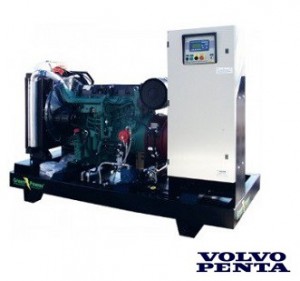

GREENPOWER Volvo Diesel Power generator 100kVA 80kW Open frame Manual starting




greenpower

Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.

Specification

  • Prime running Power (PRP) 100kVA 80kW and Emergency stand by power (ESP) 110kVA 88kW at 230/400v @50hz 1500rpm
  • High quality and reliable 4 cylinder, Volvo Penta diesel engine
  • Ideal for business applications
  • Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
  • Brushless alternator with AVR provides stable output
  • High temperature and low oil, water and fuel protection to protect against engine damage
  • Easy to use Digital Controller with Auto and Manual Start Options

» Click Here to view the Engine Datasheet

Technical Data
Generator engine   VOLVO TAD 531GE
Type 4 cycle, water-cooled, diesel engine
No of cylinders 4
Cylinders arrangement In-line
Displacement 4.76 Liters
Bore x Stroke 108 x 130 mm
Prime running Power (PRP) 100 kVA/80 kW
Emergency stand by power (ESP) 109 kVA/87,2 kW
Speed 1500 rpm
Motor power 117.4 hp/87.6kW
75% fuel consumption 18.3 (l / h)
Rated current 160 Amp
Rated voltage 400V/230V
Landuse type of unit Low Noise, Automation Type
Dimension (LxBxH) 2400x1100x2000  mm
Weight 1400 kg
Moving 4760cc
Noise level 69dB (A)
Frequency 50 Hz
Gross engine power
 88 kWb

 Standard equipment  Other configurations
  • Automatic fuse magnetothermal
  • Circuit breakers
  • Voltage meter
  • Frequency meter
  • Ampere meter
  • Hour meter
  • Emergency stop button
  •  Safety device in the engine for:
    • high water temperature
    • low oil pressure
    • low fuel level
    • battery charging error
  • Models with different voltage
  • 60 Hz version

 Accessories

  •  Mobile device on wheels
  •  Type-approved trailer
  •  Autostart
  •  Automatic power switch ATS
  •  Automatic power switch and phase-out
  •  Parallel operation
  •  Fuse type
  •  Ground fault switch
  •  Extraction point with current transformers at zero point
  •  Radiostatic protection VDE 0875 curve N
  •  Electronic speed control
  •  Oil heater
  •  Engine heater
  •  Oil pump
  •  Automatic tanker from external tank
  •  Protective frame with lift hook
  •  Container unit
  •  Alternator voltage / frequency generator
  •  Fuel tank deployment
  •  Fuel level
  •  Alarm on all internet connection.
  •  GSM alarm monitoring
  •  Capable soundproofing 70dB down to 55dB
  •  Remote control
  •  Environmental Class STAGE III
  •  Disconnect 1-phase or 3-phase, respectively
  •  UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine
  • Volvo heavy duty diesel engine
  • Four cylinder equipped with Water cooling
  • Electronic governor control system
  • Replaceable wet type cylinder liners
  • Replaceable fuel filter, oil filter and dry element air filter
  • Cooling radiator and fan
  • Fuel connection hoses and manual sump oil drain valve
  • Exhaust silencer
  • Maintenance free battery including rack and cables
  • Jacket water heater (as option)
  • Volvo Engine Manual

    Alternator

    • Brushless, single bearing system, 4 poles
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 22
    • Self-exciting and self-regulating
    • Screen protected and drip proof
    • Close voltage regulation
    Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
    • GREENPOWER Volvo Diesel Power generator 100kVA 80kW Open frame Manual starting
      Art. nr.
      GP100VO
      GREENPOWER Volvo Diesel Power generator 100kVA 80kW Open frame Manual starting
      Write down the required equipment for quotation :
