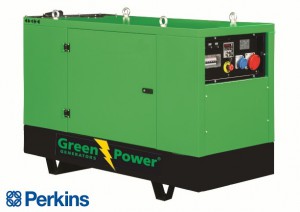

GREENPOWER Perkins Diesel Power generator 750kVA 600kW Soundproof canopy Manual starting
Greenpower Equipped with a water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
Specification
- Prime running power (PRP) 750kVA, 600kW
- Emergency stand by power (ESP) 825kVA, 660 kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 6-cylinder Perkins diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP23 with optional electronic AVR
- 400 liter fuel tank with leakage protection
» Click Here to view the Engine Datasheet
| Technical Data | |
| Generator Engine | Perkins 4006-23TAG2A |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 13.6:1 |
| No of Cylinders | 6 |
| Cylinders Arrangement | In-line |
| Displacement | 22.921 Liters |
| Bore x Stroke | 160 x 190 mm |
| Prime running power (PRP) | 750 kVA/600 kW |
| Emergency stand by power (ESP) | 825 kVA/660 kW |
| Speed | 1500 rpm |
| Governor | Electronic |
| Fuel Consumption | 117 liter/hour |
| Rated Current | 1250 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Weight | 8250 Kg |
| Rotation | Anti-clockwise |
| Dimension (LxBxH) | 5450x2200x2550 mm |
| Fuel tank | 400liter with leakage protection |
| Current | 1082A |
| Motor power | 847/632 (hp/kW) |
| Standard tank capacity | 400 l |
| Sound level | 70dB (A) |
| Frequency | 50Hz |
General Specification for silent Generator :
- Modular Design
- Anti Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the Gen-set
Silent Generator set Canopy :
- Specially treated steel sheet
- Stainless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
- Perkins heavy duty diesel engine
- 6 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line circuit breaker
- Close voltage regulation
