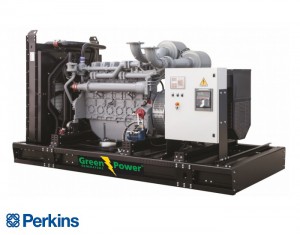

GREENPOWER Perkins Diesel Power generator 600kVA 480kW Open frame Manual starting
Greenpower Equipped with a water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.
Specification
- Prime running power (PRP) 600kVA, 480kW
- Emergency stand by power (ESP) 660kVA, 528 kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 6-cylinder Perkins diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP23 with optional electronic AVR
- 400 liter fuel tank with leakage protection
» Click Here to view the Engine Datasheet
» Click here to see Datasheets
| Technical Data | |
| Generator Engine | Perkins 2806A-E18TAG1A |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 14.5:1 |
| No of Cylinders | 6 |
| Cylinders Arrangement | In-line |
| Displacement | 18.1 Liters |
| Bore x Stroke | 145 x 183 mm |
| Prime running power (PRP) | 600 kVA/480 kW |
| Emergency stand by power (ESP) | 660 kVA/528 kW |
| Speed | 1500 rpm |
| Governor | Electronic |
| Fuel Consumption | 90 liter/hour |
| Rated Current | 1000 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Weight | 5100 Kg |
| Dimension (LxBxH) | 3450 x 1550 x2300 mm |
| Rotation | Anti-clockwise |
| Fuel tank | 400liter with leakage protection |
| Standard tank kapacitet | 400 l |
| Current | 866A |
| Sound level | 69dB (A) |
| Frequency | 50Hz |
| Motor power |
700/522 (hp/kW) |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
- Perkins heavy duty diesel engine
- 6 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line circuit breaker
- Close voltage regulation
