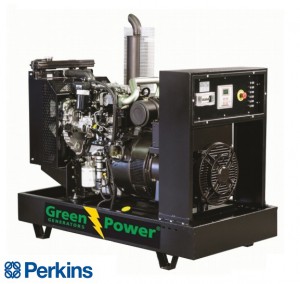

GREENPOWER Perkins Diesel Power generator 45kVA 36kW Open frame Manual starting
Greenpower Equipped with water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.
Specification
- Prime running power (PRP) 45kVA, 36kW
- Emergency stand by power (ESP) 49.5kVA, 39.6 kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 3-cylinder Perkins diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP23 with optional electronic AVR
- Fuel tank 90 liters with leakage protection
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | Perkins 1103A-33TG1 |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 17.25:1 |
| No of Cylinders | 3 |
| Cylinders Arrangement | In-line |
| Displacement | 3.3 Liters |
| Bore x Stroke | 105 x 127 mm |
| Prime running power (PRP) | 45 kVA/36 kW |
| Emergency stand by power (ESP) | 49.5 kVA/39.6 kW |
| Speed | 1500 rpm |
| Mechanical output | 42-68 kWm |
| Fuel Consumption | 8 (liter/hour) |
| Rated Current | 90 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Weight | 755 Kg |
| Dimension (LxBxH) | 1650x850x1650 mm |
| Rotation | Anti-clockwise |
| Current | 65A mm |
| Sound level | 69dB (A) |
| Frequency | 50Hz mm |
| Motor power | 55.3/41.3 (hp/kW) |
| Fuel tank | 100liter with leakage protection |
| Standard tank capacity | 90 l |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
- Perkins heavy duty diesel engine
- Three cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line ciucuit breaker
- Close voltage regulation
