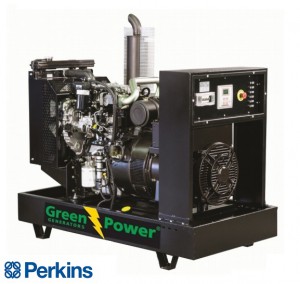

GREENPOWER Perkins Diesel Power generator 30kVA 24kW Open frame Automatic starting
Greenpower Equipped with a water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. We also supply the silenced version as an option.
Specification
- Prime running power (PRP) 30kVA, 24kW
- Emergency stand by power (ESP) 33kVA, 26.4 kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 3-cylinder Perkins diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP23 with optional electronic AVR
- Fuel tank 90 liters with leakage protection
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | Perkins 1103A-33G |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 19.25:1 |
| No of Cylinders | 3 |
| Cylinders Arrangement | In-line |
| Displacement | 3.3 Liters |
| Bore x Stroke | 105 x 127 mm |
| Prime running power (PRP) | 30 kVA/24 kW |
| Emergency stand by power (ESP) | 33 kVA/26.4 kW |
| Speed | 1500 rpm |
| Mechanical output | 28-35 kWm |
| Fuel Consumption | 7.1 liter/hour |
| Rated Current | 45 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Weight | 720 kg |
| Dimension (LxBxH) | 1650x850x1600 mm |
| Rotation | Anti-clockwise |
| Fuel tank | 90liter with leakage protection |
| Current | 43A |
| Motor power | 37.1/27.7 (hp/kW) |
| Standard tank capacity | 90 l |
| Sound level | 69dB (A) |
| Frequency | 50Hz |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
- Perkins heavy duty diesel engine
- Three cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line circuit breaker
- Close voltage regulation
