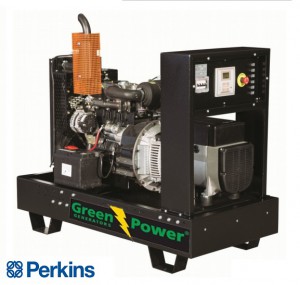

GREENPOWER Perkins Diesel Power generator 20kVA 16kW Open frame Manual starting
Specification
- Prime running power (PRP) 20kVA, 16kW
- Emergency stand by power (ESP) 22kVA, 17.6 kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 4-cylinder Perkins diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP22 with optional electronic AVR
- Fuel tank 50 liters with leakage protection
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | Perkins 404A-22G1 |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 23.3:1 |
| No of Cylinders | 4 |
| Cylinders Arrangement | In-line |
| Displacement | 2.2 Liters |
| Bore x Stroke | 84 x 100 mm |
| Prime running power (PRP) | 20 kVA/16 kW |
| Emergency stand by power (ESP) | 22 kVA/17.6 kw |
| Speed | 1500 rpm |
| Mechanical output | 18-20 kWm |
| Fuel Consumption | 4 liter/hour |
| Rated Current | 32 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Weight | 495 Kg |
| Dimension (LxBxH) | 1400 x 700 x 1400 mm |
| Rotation | Anti-clockwise |
| Sound level | 68dB (A) |
| Standard tank capacity | 50 l |
| Frequency | 50Hz |
| Fuel tank | 55liter with leakage protection |
| Motor power | 24.7/18.4 (hp/kW) |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
- Perkins heavy duty diesel engine
- 4 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line ciucuit breaker
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
