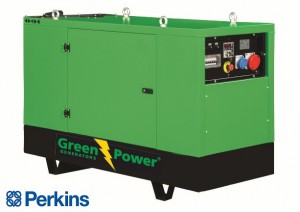

GREENPOWER Perkins Diesel Power generator 200kVA 160kW Soundproof canopy Automatic starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specification
- Prime Power(PRP) 160kW 200kVA , Limited Time Power (LTP) 176kW 220kVA at 230/400v @50hz 1500rpm
- High quality and reliable 6 cylinder, Perkins diesel engine
- Ideal for business applications
- Automatic changeover (ATS), Maintenance Free Batteries and Trickle Charger Included
- Brushless alternator with AVR provides stable output
- High temperature and low oil, water and fuel protection to protect against engine damage
- Easy to use Digital Controller with Auto and Manual Start Options
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | Perkins 1106A-70TAG4 |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 16:1 |
| No of Cylinders | 6 |
| Cylinders Arrangement | In-line |
| Displacement | 7.0 Liters |
| Bore x Stroke | 105 x 135 mm |
| Prime Rated Power (PRP) | 200 kVA/160 kW |
| Limted Time-Running Power(LTP) | 220 kVA/176 kW |
| Speed | 1500 rpm |
| Governor | Electronic |
| Fuel Consumption | 45.8 liter/hour |
| Rated Current | 400 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Weight | 2200 Kg |
| Rotation | Anti-clockwise |
| Dimension (LxBxH) | 3200 x 1100 x2000 mm |
General Specification for silent Generator :
- Modular Design
- Anti Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the Gen-set
Silent Generator set Canopy :
- Specially treated steel sheet
- Stainless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
- Perkins heavy duty diesel engine
- 6 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line circuit breaker
- Close voltage regulation
