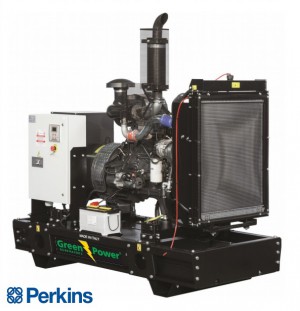

GREENPOWER Perkins Diesel Power generator 200kVA 160kW Open frame Manual starting
Greenpower Equipped with water-cooled Perkins diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.
Specification
- Prime running power (PRP) 200kVA, 160kW
- Emergency stand by power (ESP) 220kVA, 176 kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 6-cylinder Perkins diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP23 with optional electronic AVR
- Fuel tank 250 liters with leak protection
» Click Here to view the Engine Datasheet
| Technical Data | |
| Generator Engine | Perkins 1106A-70TAG4 |
| Type | 4 cycle, water-cooled, diesel engine |
| Compression Ratio | 16:1 |
| No of Cylinders | 6 |
| Cylinders Arrangement | In-line |
| Displacement | 7.0 Liters |
| Bore x Stroke | 105 x 135 mm |
| Prime running power (PRP) | 200 kVA/160 kW |
| Emergency stand by power (ESP) | 220 kVA/176 kW |
| Speed | 1500 rpm |
| Governor | Electronic |
| Fuel Consumption | 35.5 liter/hour |
| Rated Current | 400 Amps |
| Rated Voltage | 400V/230V |
| Landuse Type of Unit | Low Noise, Automation Type |
| Rotation | Anti-clockwise |
| Dimension (LxBxH) | 2400 x 1100 x 2000 mm |
| Weight | 1790 Kg |
| Standard tank capacity | 250 l |
| Current | 288A |
| Engine power | 233/174 (hp / kW) |
| Sound level | 69dB (A) |
| Frequency | 50Hz |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
- Perkins heavy duty diesel engine
- 6 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Perkins Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line circuit breaker
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
