  1. Greenpower
  2. GREENPOWER Iveco FPT Diesel Power generator 60kVA 48kW Open frame Manual starting

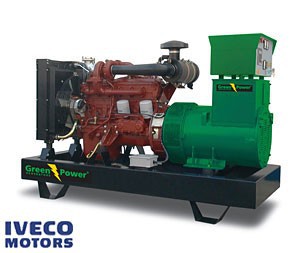

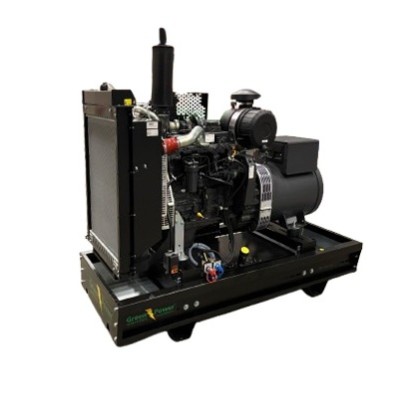

GREENPOWER Iveco FPT Diesel Power generator 60kVA 48kW Open frame Manual starting




greenpower
Greenpower Equipped with Iveco water-cooled diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

Specifications

  • Prime running power (PRP) 60kVA, 48 kW
  • Emergency stand by power (ESP) 66kVA, 52.8kW
  • 400/230 V @ 50 Hz 1500 rpm
  • High quality and reliable 4-cylinder Iveco diesel engine
  • Easily operated control panel
  • Brushless permanent magnetized generator IP22 with optional electronic AVR
  • Fuel tank 80 lt

» Click Here to view the Engine Datasheet

» Click here to see Datasheet
    Technical Data
    Generator Engine    Iveco FPT NEF N45SM1A
    Type 4 cycle, water-cooled, diesel engine
     Landuse Type of Unit   Low Noise, Automation Type
    Number of cylinder 4
    Cylinders arrangement In-line
    Displacement 4.5 liter
    Bore x Stroke 104 x 132 mm
    Prime running power (PRP) 60 kVA/48 kW
    Emergency stand by power (ESP) 66 kVA/52.8 kW
    Speed 1500 rpm
    Engine Power 71.45/53.3 (hp/kW)
    Fuel Consumption 9.8 liter/hour
    Rated current 90 A
    Rated voltage 400V/230V
    Dimension (LxBxH) 2100x1000x1800 mm
    Weight 1020 Kg
    Tank capacity 120lt
    Fuel tank 80lt

     Standard equipment  Other configurations
    • Air inlet system
    • Automatic fuse
    • Control system
    • Cooling system
    • Fly wheel and flywheel housing
    • Emergency stop button
    • Fuel system
    • Safety device in the engine for:
      • high water temperature
      • low oil pressure
      • low fuel level
      • battery charging error
    • Models with different voltage
    • 60 Hz version

     Accessories

    •  Mobile device on wheels
    •  Type-approved trailer
    •  Autostart
    •  Automatic power switch ATS
    •  Automatic power switch and phase-out
    •  Parallel operation
    •  Fuse type
    •  Ground fault switch
    •  Extraction point with current transformers at zero point
    •  Radiostatic protection VDE 0875 curve N
    •  Electronic speed control
    •  Oil heater
    •  Engine heater
    •  Oil pump
    •  Automatic tanker from external tank
    •  Protective frame with lift hook
    •  Container unit
    •  Alternator voltage / frequency generator
    •  Fuel tank deployment
    •  Fuel level
    •  Alarm on all internet connection.
    •  GSM alarm monitoring
    •  Capable soundproofing 70dB down to 55dB
    •  Remote control
    •  Environmental Class STAGE III
    •  Disconnect 1-phase or 3-phase, respectively
    •  UPS system battery backup 1-phase and 3-phase
      Standard Genset Specifications

      Engine
      • Iveco FPT heavy duty diesel engine
      • 4 cylinder equipped with Water cooling
      • Mechanical governor control system
      • Replaceable wet type cylinder liners
      • Replaceable fuel filter, oil filter and dry element air filter
      • Cooling radiator and fan
      • Fuel connection hoses and manual sump oil drain valve
      • Exhaust silencer
      • Maintenance free battery including rack and cables
      • Jacket water heater (as option)
      • Iveco FPT Engine Manual
        Alternator
        • Brushless, single bearing system
        • Insulation class H with circuit breaker protection
        • Standard degree of protection IP 23
        • Self-exciting and self-regulating
        • Main line ciucuit breaker
        • Close voltage regulation
        Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
