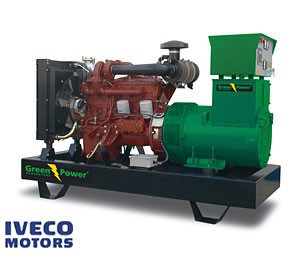

GREENPOWER Iveco FPT Diesel Power generator 50kVA 40kW Open frame Automatic starting
Greenpower Equipped with Iveco water-cooled diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.
Specification
- Prime running power (PRP) 50kVA, 40 kW
- Emergency stand by power (ESP) 55kVA, 44kW
- 400/230 V @ 50 Hz 1500 rpm
- High quality and reliable 4-cylinder Iveco diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP22 with optional electronic AVR
- Fuel tank 80 lt
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | IVECO NEF N45AM2 |
| Type | 4 cycle, water-cooled, diesel engine |
| Landuse Type of Unit | Low Noise, Automation Type |
| No of Cylinders | 4 |
| Cylinders Arrangement | In-line |
| Displacement | 3.2 Liters |
| Bore x Stroke | 104x32 mm |
| Prime running power (PRP) | 50 kVA/40 kW |
| Emergency stand by power (ESP) | 55 kVA/44 kW |
| Speed | 1500 rpm |
| Engine Power | 60.32/45 (Hp/kW) |
| Fuel Consumption | 9.3 liter/hour |
| Rated Current | 90 Amps |
| Rated Voltage | 400V/230V |
| Dimension (LxBxH) | 1650 x 850 x 1650 mm |
| Weight | 825 Kg |
| Fuel tank | 100lt |
| Tank capacity | 100lt |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Standard Genset Specifications
Engine
- Iveco FPT heavy duty diesel engine
- 4 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Iveco FPT Engine Manual
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line ciucuit breaker
- Close voltage regulation
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
