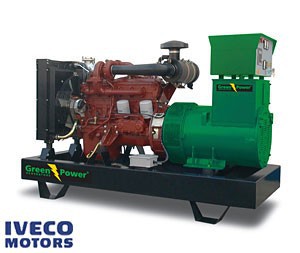

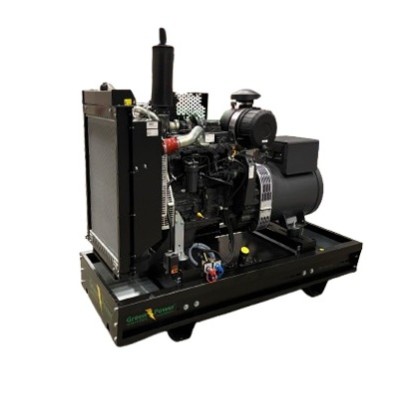

GREENPOWER Iveco FPT Diesel Power generator 30kVA 24kW Open frame Manual starting
Greenpower Equipped with stable framework, Green Power electrical panel, voltmeter, frequency meter, ampere meter, hour meter, key switch and indicator panel for the oil, battery charging and low fuel level. As an option, we also produce the silenced version.
Specifications
- Prime running power (PRP) 30kVA, 24kW
- Emergency stand by power (ESP) 33kVA, 26.4 kW
- 400V / 230 V @ 50 Hz 1500 rpm
- High quality and reliable 4-cylinder Iveco diesel engine
- Easily operated control panel
- Brushless permanent magnetized generator IP23 with optional electronic AVR
- Fuel tank 100 lt
» Click Here to view the Engine Datasheet
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | Iveco FPT S8000 AM1 |
| Type | 4 cycle, water-cooled, diesel engine |
| Speed | 1500 rpm |
| Number of cylinder | 3 |
| Cylinders arrangement | In-line |
| Displacement | 3.2 liter |
| Bore x Stroke | 104 x 115 mm |
| Prime running power (PRP) | 30 kVA/24 kW |
| Emergency stand by power (ESP) | 33 kVA/26.4 kW |
| Landuse Type of Unit | Low Noise, Automation Type |
| Engine Power | 37,7/28,1 (hp/kW) |
| Fuel Consumption | 5.4 l/h |
| Rated Current | 43.3 A |
| Rated Voltage | 400V/230V |
| Dimension (LxBxH) | 1650 x 850 x 1600 mm |
| Weight | 690Kg |
| Tank capacity | 100lt |
| Fuel tank | 100lt |
| Standard equipment | Other configurations |
|
|
| Accessories |
|
|
Engine
- Iveco FPT heavy duty diesel engine
- 4 cylinder equipped with Water cooling
- Mechanical governor control system
- Replaceable wet type cylinder liners
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Fuel connection hoses and manual sump oil drain valve
- Exhaust silencer
- Maintenance free battery including rack and cables
- Jacket water heater (as option)
- Iveco FPT Engine Manual
Alternator
- Brushless, single bearing system
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 23
- Self-exciting and self-regulating
- Main line ciucuit breaker
- Close voltage regulation
