  2. GREENPOWER Iveco FPT Diesel Power generator 130kVA 104kW Open frame Manual starting

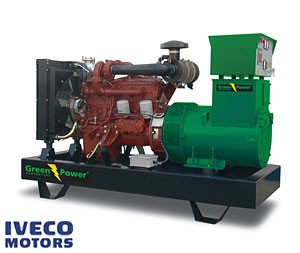

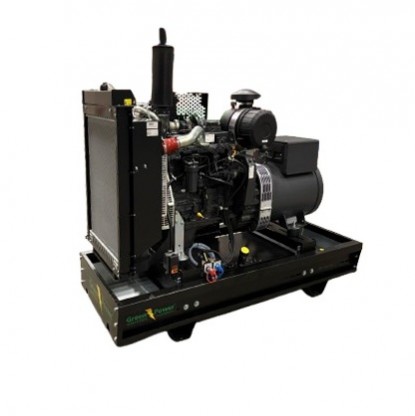

GREENPOWER Iveco FPT Diesel Power generator 130kVA 104kW Open frame Manual starting




greenpower
Greenpower Equipped with Iveco water-cooled diesel engine. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

Specification

  • Prime running power (PRP) 130kVA, 104 kW
  • Emergency stand by power (ESP) 143kVA, 114.4kW
  • 400V / 230 V @ 50 Hz 1500 rpm
  • High quality and reliable 6-cylinder Iveco diesel engine
  • Easily operated control panel
  • Brushless permanent magnetized generator IP22 with optional electronic AVR

» Click Here to view the Engine Datasheet

» Click here to see Datasheet

Technical Data
Generator Engine   Iveco FPT NEF N67SM1
Type 4 cycle, water-cooled, diesel engine
 Landuse Type of Unit   Low Noise, Automation Type
Number of cylinder 6
Cylinders arrangement In-line
Displacement 6.7 liter
Bore x Stroke 104 x 132 mm
Prime running power (PRP) 130 kVA/104 kW
 Emergency stand by power (ESP)  143 kVA/114.4 kW
Speed 1500 rpm
Engine Power 147.45/110 (hp/kW)
Fuel Consumption 23 liter/hour
Rated Current 187.6 Amps
Rated Voltage 400V/230V
Dimension (LxBxH) 2400 x 1100 x 2000 mm
Weight 1525 Kg
Tank capacity 250lt

 Standard equipment  Other configurations
  • Air inlet system
  • Automatic fuse
  • Control system
  • Cooling system
  • Fly wheel and flywheel housing
  • Emergency stop button
  • Fuel system
  • Safety device in the engine for:
    • high water temperature
    • low oil pressure
    • low fuel level
    • battery charging error
  • Models with different voltage
  • 60 Hz version

 Accessories

  •  Mobile device on wheels
  •  Type-approved trailer
  •  Autostart
  •  Automatic power switch ATS
  •  Automatic power switch and phase-out
  •  Parallel operation
  •  Fuse type
  •  Ground fault switch
  •  Extraction point with current transformers at zero point
  •  Radiostatic protection VDE 0875 curve N
  •  Electronic speed control
  •  Oil heater
  •  Engine heater
  •  Oil pump
  •  Automatic tanker from external tank
  •  Protective frame with lift hook
  •  Container unit
  •  Alternator voltage / frequency generator
  •  Fuel tank deployment
  •  Fuel level
  •  Alarm on all internet connection.
  •  GSM alarm monitoring
  •  Capable soundproofing 70dB down to 55dB
  •  Remote control
  •  Environmental Class STAGE III
  •  Disconnect 1-phase or 3-phase, respectively
  •  UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine
  • Iveco FPT heavy duty diesel engine
  • 6 cylinder equipped with Water cooling
  • Mechanical governor control system
  • Replaceable wet type cylinder liners
  • Replaceable fuel filter, oil filter and dry element air filter
  • Cooling radiator and fan
  • Fuel connection hoses and manual sump oil drain valve
  • Exhaust silencer
  • Maintenance free battery including rack and cables
  • Jacket water heater (as option)
  • Iveco FPT Engine Manual
    Alternator
    • Brushless, single bearing system
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 23
    • Self-exciting and self-regulating
    • Main line ciucuit breaker
    • Close voltage regulation

    Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
