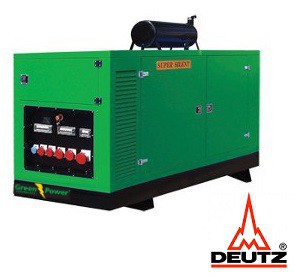

GREENPOWER DEUTZ Diesel Power generator 75kVA 60kW Soundproof canopy Automatic starting




greenpower


ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with a stable framework and Green Power electrical panel, voltmeter, frequency meter, amperage meter, hour meter, start key and indicator panel for oil, battery charge and low fuel level.

ELECTRIC GREENPOWER

  • Prime running power (PRP) 75kVA, 60kW.
  • Emergency stand by power (ESP) 82.5kVA, 66kW.
  • 400V / 230 V @ 50 Hz 1500 rpm.
  • High quality and reliable 4-cylinder Deutz diesel engine
  • Easily operated control panel.
  • Brushless permanent magnetized generator IP22 with optional electronic AVR.
  • Fuel tank 120 liters with leakage protection

» Engine BF4M2012C Reference Guide

Technical Data
Generator Engine BF4M 2012 C
Type Water cooled, 4 stroke,1500 rpm diesel engine
Number of Cylinder 4
Cylinder arrangement in-line
Prime running power (PRP)  75kVA/ 60 kW
Emergency stand by power (ESP) 82.5kVA/66kW
Rated Voltage  400V/230V
Speed 1500 rpm
Fuel tank 120 liters
Motor power 90 / 66.1 (hp / kW)
75% fuel consumption 12 (l / h)
Rated current 125 A
Bore/Stroke 101 x 126 mm
Displacement 5.66 Lt
Minimum idle speed 650 min-1
Max. rated speed 2500 rpm
Specific fuel consumption 225 g/kWh
Weight 1270 kg
Moving 4040cc
Noise level 69dB (A)
Frequency 50Hz
Dimensions (L x B x H) 2300 x 1050 x 1590 mm

General specifications for silent generator:
  • Modular design
  • Anti-Corrosion powder coated
  • Insulated with acoustic foam lining
  • Central lifting ring, exhaust pipe can be removed, which is easy to transport
  • Lockable doors with key
  • Protective mesh for rotating parts
  • Exterior emergency stop push button
  • Thermally insulated engine exhaust system
  • Doors fitted on each side
  • Panel observing window
  • Access to the radiator fill or cap
  • 20 ', 30'or 40' container canopy is optionally
  • Color is optional
  • Fuel gauge or lube drain valve is optional
  • Normal or super soundproof canopy is optional
  • Base frame fuel tank or profile fuel tank is optional
  • The muffler fixed position depend on the output power of the gen-set
Silent generator set canopy
  • With specially treated steel sheet
  • Stainless steel locks
  • Control panel viewing window for monitoring the status of the generator set
  • Good ventilation system and anti-heat radiation saturation
  • Effective anti-vibration devices to ensure generator driven steadily
  • Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
  • Emergency stop button mounted outside
  • Side lockable door easy for maintenance and installation
  • Lube oil and cooling water drain pipe to the exterior of the canopy
  • Fuel tank built with level indicator
 Standard equipment
 Other configurations
  • Circuit breakers
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Voltage meter
  • Ampere meter
  • Frequency meter
  • Hour meter
  • Emergency stop button
  • Safety device in the engine for:
- high water temperature
- low oil pressure
- low fuel level
- battery charging error
  • Models with different voltage
  • 60 Hz version


 Accessories
  • Mobile device on wheels
  • Type-approved trailer
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with current transformers at zero point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine:
  • Integrated oil cooling
  • Overhead valve
  • The two compression and one oil scraper ring (per cylinder)
  • Full-flow oil filter cartridge type
  • Fuel filter cartridge type
  • Electric starter 12V
  • Exhaust silencer
Genset Features:
  • Original Deutz - Water Cooled Diesel Engine
  • mounted at front and back of engine
  • Mecc Alte Alternator, WITH AVR
  • Silenced to 69 db(A) @ 7 meters
  • Single point lift, Fork lift access,
  • Fully welded heavy duty canopy 2 mm.
  • Heavy duty fuel tank & frame – 4mm walls.
  • Internal muffler and exhaust pipe
  • Engine liquid spill containment area.
  • Mechanical fuel level gauge,
  • Fuel tank drain tap, Oil drain tap and pipe
  • 500 hour service intervals
  • Feature packed genset controller – BE 24,
  • 416/240 volt three pole Circuit Breaker.
  • High alternator motor starting capacity.
  • Eng/Alt wiring is simple & color coded.
  • Circuit breakers in control wiring
  • Eng/Alt/Controller manuals included

Alternator:

  • Three-phase alternator, 14 V; 55 A (Standard)
  • Replaceable cartridge
  • Optional connection for cab heating
  • Close voltage regulation
  • Standard degree of protection IP 22

Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.

  • GREENPOWER DEUTZ Diesel Power generator 75kVA 60kW Soundproof canopy Automatic starting
    Art. nr.
    GP75DZSAS
    GREENPOWER DEUTZ Diesel Power generator 75kVA 60kW Soundproof canopy Automatic starting
