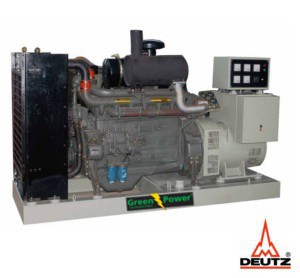

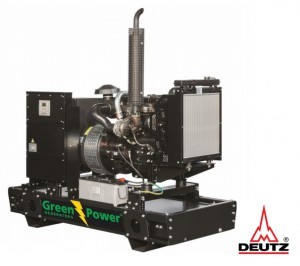

GREENPOWER DEUTZ Diesel Power generator 60kVA 48kW Open frame Automatic starting
ELVERK GreenPower with air-cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.
ELECTRIC GREENPOWER
- Prime running power (PRP) 60kVA, 48kW.
- Emergency stand by power (ESP) 66kVA, 52.8kW.
- 400V / 230 V @ 50 Hz 1500 rpm.
- High quality and reliable 6-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
» Engine F6L 912 Reference Guide
| Technical Data |
|
| Generator Engine | F6L 912 |
| Type | Air cooled, 4 stroke,1500 rpm diesel engine |
| Number of Cylinder | 6 |
| Prime running power (PRP) | 60kVA/ 48 kW |
| Emergency stand by power (ESP) | 66kVA/52.8kW |
| Fuel tank | 75 liters |
| Motor Power | 74.9 / 55 (HP / kW) |
| 75% consumption | 6.8 (l / h) |
| Rated current | 90 A |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 100/120 mm |
| Displacement | 5.66 Lt |
| Minimum idle speed | 650 min-1 |
| Max. rated speed | 2500 rpm |
| Specific fuel consumption | 225 g/kWh |
| Weight | 1070 kg |
| Moving | 5644cc |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2100 x 1000 x 1800 mm |
| Standard equipment |
Other configurations |
- low oil pressure - low fuel level - battery charging error |
|
| Accessories | |
|
Engine
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Air Cooled Diesel Engine
- mounted at front and back of engine
- Mecc Alte Alternator, WITH AVR
- Silenced to 69 db(A) @ 7 meters
- Single point lift, Fork lift access,
- Fully welded heavy duty canopy 2 mm.
- Heavy duty fuel tank & frame – 4mm walls.
- Internal muffler and exhaust pipe
- Engine liquid spill containment area.
- Mechanical fuel level gauge,
- Fuel tank drain tap, Oil drain tap and pipe
- 500 hour service intervals
- Feature packed genset controller – BE 24,
- 416/240 volt three pole Circuit Breaker.
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator, 14 V; 55 A (Standard)
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
