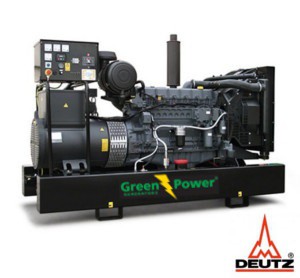

GREENPOWER DEUTZ Diesel Power generator 510kVA 408kW Open frame Automatic starting
ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
As an option, we also supply the silenced version.
ELECTRIC GREENPOWER
- Prime running power (PRP) 510kVA, 408kW.
- Emergency stand by power (ESP) 561kVA, 449kW.
- 400V / 230 V @ 50 Hz 1500 rpm.
- High quality and reliable 8-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- 400 liter fuel tank with leakage protection
» Engine BF8M 1015 CP Reference Guide
| Technical Data | |
| Generator Engine | BF8M 1015 CP |
| Type | Water-cooled 4 stroke,1500 rpm diesel engine |
| Number of Cylinder | 8, in Line |
| Prime running power (PRP) | 510kVA/ 408 kW |
| Emergency stand by power (ESP) | 561kVA/449kW |
| Fuel tank | 400 liters |
| Engine power | 590/474 (hp / kW) |
| 75% fuel consumption | 85 (l / h) |
| Rated current | 800 A |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 132/145 mm |
| Displacement | 11.9 Lt |
| Minimum idle speed | 500 min-1 |
| Max. rated speed | 2300 rpm |
| Engine fuel consumption | 198 g/kWh |
| Weight | 3730 Kg |
| Moving | 15874cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 3450 x 1550 x 2100 mm |
| Standard equipment |
Other configurations |
- low oil pressure - low fuel level - battery charging error |
|
| Accessories | |
|
Engine
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Water Cooled Diesel Engine
- Fully welded heavy duty base frame & tank.
- Engine liquid spill containment area.
- 500 hour service intervals
- Remote Start - Genset Controller,
- 415 Volt Circuit Breaker.
- Mecc Alte Alternator
- 300 % - Alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator 12 V or 24 V
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
