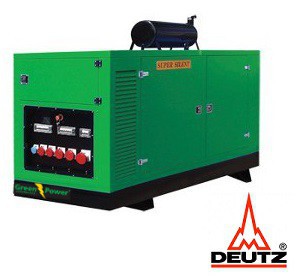

GREENPOWER DEUTZ Diesel Power generator 40kVA 32kW Soundproof canopy Automatic starting
ELVERK GreenPower with oil-cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
ELECTRIC GREENPOWER
- Prime running power (PRP) 40kVA, 32kW.
- Emergency stand by power (ESP) 44kVA, 35.2kW.
- 400V / 230 V @ 50 Hz 1500 rpm.
- High quality and reliable 4-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- Fuel tank 90 liters with leakage protection
| Technical Data | |
| Generator Engine | BF4M 2011 |
| Type | Oil cooled, 4 stroke,1500 rpm diesel engine |
| Number of Cylinder | 4 |
| Prime running power (PRP) | 40kVA/ 32kW |
| Emergency stand by power (ESP) | 44kVA/35,2kW |
| Cylinder arrangement | in-line |
| Fuel tank | 90 liters |
| Motor Power | 49.5 / 36.4 (hp / kW) |
| 75% consumption | 6.8 (l / h) |
| Rated current | 90 A |
| Rated Voltage | 400V/230V |
| Spee | 1500 rpm |
| Bore/Stroke | 94/112 mm |
| Displacement | 3.11 Lt |
| Minimum idle speed | 900 rpm |
| Max. rated speed | 2800 rpm |
| Specific fuel consumption | 212 g/kWh |
| Weight | 860 kg |
| Moving | 3110cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2000 x 850 x 1275 mm |
General specifications for silent generator:
- Modular design
- Anti-Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- 20 ', 30'or 40' container canopy is optionally
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the gen-set
- With specially treated steel sheet
- Stainless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment |
Other configurations |
- low oil pressure - low fuel level - battery charging error |
|
| Accessories | |
|
Engine
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Oil Cooled Diesel Engine
- mounted at front and back of engine
- Mecc Alte Alternator, WITH AVR
- Silenced to 67 db(A) @ 7 meters
- Single point lift, Fork lift access,
- Fully welded heavy duty canopy 2 mm.
- Heavy duty fuel tank & frame – 4mm walls.
- Internal muffler and exhaust pipe
- Engine liquid spill containment area.
- Mechanical fuel level gauge,
- Fuel tank drain tap, Oil drain tap and pipe
- 500 hour service intervals
- Feature packed genset controller – BE 24,
- 416/240 volt three pole Circuit Breaker.
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator, 14 V; 55 A (Standard)
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
