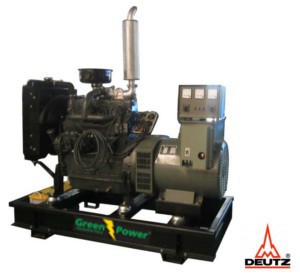

GREENPOWER DEUTZ Diesel Power generator 40kVA 32kW Open frame Manual starting
ELVERK GreenPower med vattenkyld dieselmotor av märket Deutz. Levereras med stabilt ramverk och Green Power elektropanel, voltmätare, frekvensmätare, amperemätare, tim-mätare, startnyckel och indikationspanel för olja, batteriladdning och låg bränslenivå. Som tillval levererar vi även tystade versionen.
ELVERK GREENPOWER
- Prime running power (PRP) 40kVA, 32kW.
- Emergency stand by power (ESP) 44kVA, 35,2kW.
- 400 / 230 V @ 50 Hz 1500 rpm.
- Hög kvalitet och pålitlig 4-cylindrig Deutz dieselmotor
- Lättmanövrerad kontrollpanel.
- Borstlös permanent magnetiserad generator IP22 med tillval elektronisk AVR.
» Click here to see Datasheet
| Technical Data | |
| Generator Engine | BF4L 2011 |
| Type | Air cooled, 4 stroke,1500 rpm diesel engine |
| Number of Cylinder | 4 Vertical in-line |
| Prime running power (PRP) | 40kVA/32kW |
| Emergency stand by power (ESP) | 44kVA/35.2kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 94/112 mm |
| Displacement | 3.11 Lt |
| Fuel tank | 75 liters |
| Motor Power | 49.8 / 36.4 (hp / kW) |
| 75% consumption | 7 (l / h) |
| Rated current | 90 A |
| Minimum idle speed | 900 rpm |
| Max. rated speed | 2800 rpm |
| Specific fuel consumption | 212 g/kWh |
| Weight (dry) | 665 kg |
| Current | 57 A |
| Moving | 3110cc |
| Frekvens | 50Hz |
| Dimensions (L x B x H) | 1650 x 850 x 1600 mm |
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine:
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Air Cooled Diesel Engine
- mounted at front and back of engine
- Mecc Alte Alternator, WITH AVR
- Silenced to 67 db(A) @ 7 meters
- Single point lift, Fork lift access,
- Fully welded heavy duty canopy 2 mm.
- Heavy duty fuel tank & frame – 4mm walls.
- Internal muffler and exhaust pipe
- Engine liquid spill containment area.
- Mechanical fuel level gauge,
- Fuel tank drain tap, Oil drain tap and pipe
- 500 hour service intervals
- Feature packed genset controller – BE 24,
- 416/240 volt three pole Circuit Breaker.
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator, 14 V; 60 A (Standard)
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
