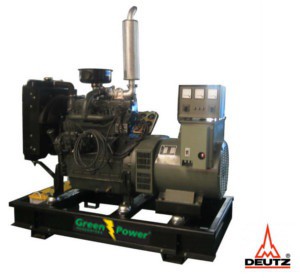

GREENPOWER DEUTZ Diesel Power generator 40kVA 32kW Open frame Manual starting engine BF4M 2011, weight 710kg




greenpower

ELVERK GreenPower med oljekyld dieselmotor av märket Deutz. Levereras med stabilt ramverk och Green Power elektropanel, voltmätare, frekvensmätare, amperemätare, tim-mätare, startnyckel och indikationspanel för olja, batteriladdning och låg bränslenivå. Som tillval levererar vi även tystade versionen.

ELVERK GREENPOWER
  • Prime running power (PRP) 40kVA, 32kW.
  • Emergency stand by power (ESP) 44kVA, 35,2kW.
  • 400 / 230 V @ 50 Hz 1500 rpm.
  • Hög kvalitet och pålitlig 4-cylindrig Deutz dieselmotor
  • Lättmanövrerad kontrollpanel.
  • Borstlös permanent magnetiserad generator IP22 med tillval elektronisk AVR.
  • Bränsletank 90liter med läckageskydd

» Engine BF4M2011 Reference Guide

» Click here to see Datasheet

      Technical Data
      Generator Engine BF4M 2011
      Type Oil cooled, 4 stroke,1500 rpm diesel engine
      Number of Cylinder 4
      Cylinder arrangement in-line
      Prime running power (PRP)  40kVA/ 32kW
      Emergency stand by power (ESP) 44kVA/35.2kW
      Rated Voltage  400V/230V
      Speed       1500 rpm
      Bore/Stroke 94/112 mm
      Displacement 3.11 Lt
      Fuel tank 75 liters
      Motor Power 49 / 36.4 (hp / kW)
      75% consumption 6.8 (l / h)
      Rated current 90 A
      Minimum idle speed 900 rpm
      Max. rated speed 2800 rpm
      Specific fuel consumption 212 g/kWh
      Weight 675 kg
      Current 57 A
      Moving 3110cc
      Noise level 69dB (A)
      Frequency 50Hz
      Dimensions (L x B x H) 1650 x 850 x 1650 mm

       Standard equipment
       Other configurations
       Circuit breakers
       Voltage meter
       Ampere meter
       Frequency meter
       Hour meter
       Emergency stop button
       Safety device in the engine for:
      - high water temperature
      - low oil pressure
      - low fuel level
      - battery charging error
      Models with different voltage
      60 Hz version

       Accessories
      • Mobile device on wheels
      • Type-approved trailer
      • Autostart
      • Automatic power switch ATS
      • Automatic power switch and phase-out
      • Parallel operation
      • Fuse type
      • Ground fault switch
      • Extraction point with current transformers at zero point
      • Radiostatic protection VDE 0875 curve N
      • Electronic speed control
      • Oil heater
      • Engine heater
      • Oil pump
      • Automatic tanker from external tank
      • Protective frame with lift hook
      • Container unit
      • Alternator voltage / frequency generator
      • Fuel tank deployment
      • Fuel level
      • Alarm on all internet connection.
      • GSM alarm monitoring
      • Capable soundproofing 70dB down to 55dB
      • Remote control
      • Environmental Class STAGE III
      • Disconnect 1-phase or 3-phase, respectively
      • UPS system battery backup 1-phase and 3-phase
      Standard Genset Specifications
       Engine:
      • Integrated oil cooling
      • Overhead valve
      • The two compression and one oil scraper ring (per cylinder)
      • Full-flow oil filter cartridge type
      • Fuel filter cartridge type
      • Electric starter 12V
      • Exhaust silencer
          Genset Features:
            • Original Deutz - Oil Cooled Diesel Engine
            • mounted at front and back of engine
            • Mecc Alte Alternator, WITH AVR
            • Silenced to 67 db(A) @ 7 meters
            • Single point lift, Fork lift access,
            • Fully welded heavy duty canopy 2 mm.
            • Heavy duty fuel tank & frame – 4mm walls.
            • Internal muffler and exhaust pipe
            • Engine liquid spill containment area.
            • Mechanical fuel level gauge,
            • Fuel tank drain tap, Oil drain tap and pipe
            • 500 hour service intervals
            • Feature packed genset controller – BE 24,
            • 416/240 volt three pole Circuit Breaker.
            • High alternator motor starting capacity.
            • Eng/Alt wiring is simple & color coded.
            • Circuit breakers in control wiring
            • Eng/Alt/Controller manuals included

              Alternator:

              • Three-phase alternator, 14 V; 55 A (Standard)
              • Replaceable cartridge
              • Optional connection for cab heating
              • Close voltage regulation
              • Standard degree of protection IP 22

              Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
