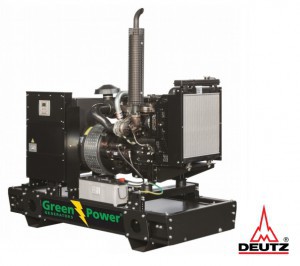

GREENPOWER DEUTZ Diesel Power generator 40kVA 32kW Open frame Automatic starting




greenpower

ELVERK GreenPower with air-cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level. As an option, we also supply the silenced version.

ELECTRIC GREENPOWER

  • Prime running power (PRP) 40kVA, 32kW.
  • Emergency stand by power (ESP) 44kVA, 35.2kW.
  • 400V / 230 V @ 50 Hz 1500 rpm.
  • High quality and reliable 4-cylinder Deutz diesel engine
  • Easily operated control panel.
  • Brushless permanent magnetized generator IP22 with optional electronic AVR.
» Engine BF4L 2011 Reference Guide

Technical Data
Generator Engine BF4L 2011
Type Air cooled, 4 stroke,1500 rpm diesel engine
Number of Cylinder 4 Vertical in-line
Prime running power (PRP)  40kVA/32kW
Emergency stand by power (ESP) 44kVA/35.2kW
Fuel tank 90 liters
Motor Power 49.5 / 36.4 (hp / kW)
75% consumption 7 (l / h)
Rated current 90 A
Rated Voltage  400V/230V
Speed 1500 rpm
Bore/Stroke 94/112 mm
Displacement 3.11 Lt
Minimum idle speed 900 rpm
Max. rated speed 2800 rpm
Specific fuel consumption 212 g/kWh
Weight (dry) 700 kg
Moving 3110cc
Frequency 50Hz
Dimensions (L x B x H) 1650 x 850 x 1600 mm


 Standard equipment
 Other configurations
  • Circuit breakers
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Voltage meter
  • Ampere meter
  • Frequency meter
  • Hour meter
  • Emergency stop button
  • Safety device in the engine for:
- high water temperature
- low oil pressure
- low fuel level
- battery charging error
  • Models with different voltage
  • 60 Hz version


 Accessories
  • Mobile device on wheels
  • Type-approved trailer
  • Autostart
  • Automatic power switch ATS
  • Automatic power switch and phase-out
  • Parallel operation
  • Fuse type
  • Ground fault switch
  • Extraction point with current transformers at zero point
  • Radiostatic protection VDE 0875 curve N
  • Electronic speed control
  • Oil heater
  • Engine heater
  • Oil pump
  • Automatic tanker from external tank
  • Protective frame with lift hook
  • Container unit
  • Alternator voltage / frequency generator
  • Fuel tank deployment
  • Fuel level
  • Alarm on all internet connection.
  • GSM alarm monitoring
  • Capable soundproofing 70dB down to 55dB
  • Remote control
  • Environmental Class STAGE III
  • Disconnect 1-phase or 3-phase, respectively
  • UPS system battery backup 1-phase and 3-phase
Standard Genset Specifications
Engine
  • Overhead valve
  • The two compression and one oil scraper ring (per cylinder)
  • Full-flow oil filter cartridge type
  • Fuel filter cartridge type
  • Electric starter 12V
  • Exhaust silencer
Genset Features:
  • Original Deutz - Air Cooled Diesel Engine
  • mounted at front and back of engine
  • Mecc Alte Alternator, WITH AVR
  • Silenced to 67 db(A) @ 7 meters
  • Single point lift, Fork lift access,
  • Fully welded heavy duty canopy 2 mm.
  • Heavy duty fuel tank & frame – 4mm walls.
  • Internal muffler and exhaust pipe
  • Engine liquid spill containment area.
  • Mechanical fuel level gauge,
  • Fuel tank drain tap, Oil drain tap and pipe
  • 500 hour service intervals
  • Feature packed genset controller – BE 24,
  • 416/240 volt three pole Circuit Breaker.
  • High alternator motor starting capacity.
  • Eng/Alt wiring is simple & color coded.
  • Circuit breakers in control wiring
  • Eng/Alt/Controller manuals included

Alternator:

  • Three-phase alternator, 14 V; 60 A (Standard)
  • Replaceable cartridge
  • Optional connection for cab heating
  • Close voltage regulation
  • Standard degree of protection IP 22
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
