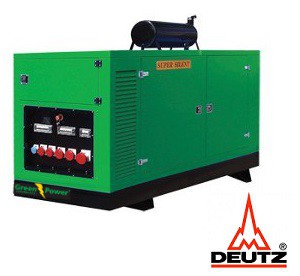

GREENPOWER DEUTZ Diesel Power generator 200kVA 160kW Soundproof canopy Manual starting




greenpower

ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.

ELECTRIC GREENPOWER

  • Prime running power (PRP) 200kVA, 160kW.
  • Emergency stand by power (ESP) 220kVA, 176kW.
  • 400V / 230 V @ 50 Hz 1500 rpm.
  • High quality and reliable 6-cylinder Deutz diesel engine
  • Easily operated control panel.
  • Brushless permanent magnetized generator IP22 with optional electronic AVR.
  • Fuel tank 250 liters with leak protection

» Engine BF6M 1013 FCG3 Reference Guide

    Technical Data
    Generator Engine BF6M 1013 FCG3
    Type Water cooled, 6 stroke,1500 rpm diesel engine
    Number of Cylinder 6
    Cylinder arrangement in-line
    Prime running power (PRP) 200kVA/ 160 kW
    Emergency stand by power (ESP) 220kVA/176kW
    Fuel tank 250 liters
    Engine power 244/179 (hp / kW)
    75% fuel consumption 36.5 (l / h)
    Rated current 400 A
    Rated Voltage  400V/230V
    Speed 1500 rpm
    Bore/Stroke 108x130 mm
    Displacement 7.15 Lt
    Minimum idle speed 650 min-1
    Max. rated speed 2500 rpm
    Specific fuel consumption 225 g/kWh
    Weight 2750 Kg
    Moving 7150cc
    Noise level 69dB (A)
    Frequency 50Hz
    Dimensions (L x B x H) 3700 x 1450 x 2250 mm


    General specifications for silent generator:
    • Modular design
    • Anti-Corrosion powder coated
    • Insulated with acoustic foam lining
    • Central lifting ring, exhaust pipe can be removed, which is easy to transport
    • Lockable doors with key
    • Protective mesh for rotating parts
    • Exterior emergency stop push button
    • Thermally insulated engine exhaust system
    • Doors fitted on each side
    • Panel observing window
    • Access to the radiator fill or cap
    • 20 ', 30'or 40' container canopy is optionally
    • Color is optional
    • Fuel gauge or lube drain valve is optional
    • Normal or super soundproof canopy is optional
    • Base frame fuel tank or profile fuel tank is optional
    • The muffler fixed position depend on the output power of the gen-set
    Silent generator set canopy
    • With specially treated steel sheet
    • Stainless steel locks
    • Control panel viewing window for monitoring the status of the generator set
    • Good ventilation system and anti-heat radiation saturation
    • Effective anti-vibration devices to ensure generator driven steadily
    • Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
    • Emergency stop button mounted outside
    • Side lockable door easy for maintenance and installation
    • Lube oil and cooling water drain pipe to the exterior of the canopy
    • Fuel tank built with level indicator
     Standard equipment
     Other configurations
     Circuit breakers
     Voltage meter
     Ampere meter
     Frequency meter
     Hour meter
     Emergency stop button
     Safety device in the engine for:
    - high water temperature
    - low oil pressure
    - low fuel level
    - battery charging error
    Models with different voltage
    60 Hz version

     Accessories
    • Mobile device on wheels
    • Type-approved trailer
    • Autostart
    • Automatic power switch ATS
    • Automatic power switch and phase-out
    • Parallel operation
    • Fuse type
    • Ground fault switch
    • Extraction point with current transformers at zero point
    • Radiostatic protection VDE 0875 curve N
    • Electronic speed control
    • Oil heater
    • Engine heater
    • Oil pump
    • Automatic tanker from external tank
    • Protective frame with lift hook
    • Container unit
    • Alternator voltage / frequency generator
    • Fuel tank deployment
    • Fuel level
    • Alarm on all internet connection.
    • GSM alarm monitoring
    • Capable soundproofing 70dB down to 55dB
    • Remote control
    • Environmental Class STAGE III
    • Disconnect 1-phase or 3-phase, respectively
    • UPS system battery backup 1-phase and 3-phase

    Standard Genset Specifications
    Engine:

    • Integrated oil cooling
    • Overhead valve
    • The two compression and one oil scraper ring (per cylinder)
    • Full-flow oil filter cartridge type
    • Fuel filter cartridge type
    • Electric starter 12V
    • Exhaust silencer
    • Governor type: Electric
    • Cooling method: Closed water cooling with radiator and fan
    • Fuel type: 0# Light diesel
    • Engine Oil type: SAE 15W40
    • Starting system: 24V DC

    Alternator:

    • Model:LSA46.2M5
    • Brand: Leroy Somer
    • Number of poles: 4
    • Number of bearings: 1
    • Excitation: Self excitated
    • Type of regulation: Automatic Voltage Regulation
    • Voltage accuracy: ±1% with any power factor and speed variations between -5% +30%
            Genset Features:
              • Original Deutz - Water Cooled Diesel Engine
              • mounted at front and back of engine
              • Mecc Alte Alternator, WITH AVR
              • Silenced to 69 db(A) @ 7 meters
              • Single point lift, Fork lift access,
              • Fully welded heavy duty canopy 2 mm.
              • Heavy duty fuel tank & frame – 4mm walls.
              • Internal muffler and exhaust pipe
              • Engine liquid spill containment area.
              • Mechanical fuel level gauge,
              • Fuel tank drain tap, Oil drain tap and pipe
              • 500 hour service intervals
              • Feature packed genset controller – BE 24,
              • 416/240 volt three pole Circuit Breaker.
              • High alternator motor starting capacity.
              • Eng/Alt wiring is simple & color coded.
              • Circuit breakers in control wiring
              • Eng/Alt/Controller manuals included
