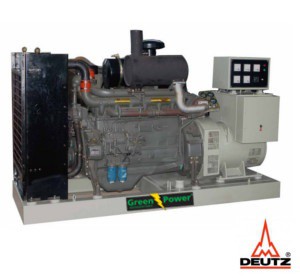

GREENPOWER DEUTZ Diesel Power generator 200kVA 160kW Open frame Manual starting
ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
As an option, we also supply the silenced version.
ELECTRIC GREENPOWER
- Prime running power (PRP) 200kVA, 160kW.
- Emergency stand by power (ESP) 220kVA, 176kW.
- 400/230 V @ 50 Hz 1500 rpm.
- High quality and reliable 6-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- Fuel tank 250 liters with leak protection
» Engine BF6M 1013 FCG3 Reference Guide
| Technical Data |
|
| Generator Engine | BF6M 1013 FCG3 |
| Type | Water cooled, 6 stroke,1500 rpm diesel engine |
| Number of Cylinder | 6 |
| Cylinder arrangement | in-line |
| Fuel tank | 250 liters |
| Engine power | 244/179 (hp / kW) |
| Prime running power (PRP) | 200kVA/ 160 kW |
| Emergency stand by power (ESP) | 220kVA/176kW |
| 75% fuel consumption | 36.5 (l / h) |
| Rated current | 400 A |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 108x130 mm |
| Displacement | 7.15 Lt |
| Minimum idle speed | 650 min-1 |
| Max. rated speed | 2500 rpm |
| Specific fuel consumption | 225 g/kWh |
| Weight | 2050 Kg |
| Moving | 7150cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2800 x 1310 x 2600 mm |
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine:
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Governor type: Electric
- Cooling method: Closed water cooling with radiator and fan
- Fuel type: 0# Light diesel
- Engine Oil type: SAE 15W40
- Starting system: 24V DC
- Model:LSA46.2M5
- Brand: Leroy Somer
- Number of poles: 4
- Number of bearings: 1
- Excitation: Self excitated
- Type of regulation: Automatic Voltage Regulation
- Voltage accuracy: ±1% with any power factor and speed variations between -5% +30%
- Original Deutz - Water Cooled Diesel Engine
- mounted at front and back of engine
- Mecc Alte Alternator, WITH AVR
- Silenced to 75 db(A) @ 7 meters
- Single point lift, Fork lift access,
- Fully welded heavy duty canopy 2 mm.
- Heavy duty fuel tank & frame – 4mm walls.
- Internal muffler and exhaust pipe
- Engine liquid spill containment area.
- Mechanical fuel level gauge,
- Fuel tank drain tap, Oil drain tap and pipe
- 500 hour service intervals
- Feature packed genset controller – BE 24,
- 416/240 volt three pole Circuit Breaker.
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
