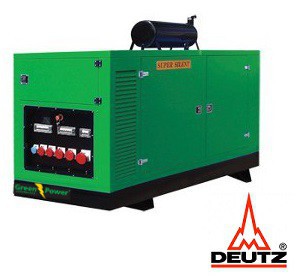

GREENPOWER DEUTZ Diesel Power generator 165kVA 132kW Soundproof canopy Automatic starting
ELVERK GreenPower with water cooled diesel engine of the brand Deutz. Supplied with stable framework and Green Power electrical panel, voltmeter, frequency meter, ammeter, hour meter, starter key and indicator panel for oil, battery charge and low fuel level.
ELECTRIC GREENPOWER
- Prime running power (PRP) 165kVA, 132kW.
- Emergency stand by power (ESP) 181.5kVA, 145.2kW.
- 400V / 230 V @ 50 Hz 1500 rpm.
- High quality and reliable 6-cylinder Deutz diesel engine
- Easily operated control panel.
- Brushless permanent magnetized generator IP22 with optional electronic AVR.
- Fuel tank 250 liters with leak protection
» Engine BF6M1013EC Reference Guide
| Technical Data | |
| Generator Engine | BF6M 1013 EC |
| Type | Water cooled 4 stroke, 1500 rpm diesel engine |
| Number of Cylinder | 6, in Line |
| Prime running power (PRP) | 165kVA/ 132 kW |
| Emergency stand by power (ESP) | 181.5kVA/145.2kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Fuel tank | 250 liters |
| Engine power | 193.3 / 142 (hp / kW) |
| 75% consumption | 24.3 (l / h) |
| Rated current | 250 A |
| Bore/Stroke | 108/130 mm |
| Displacement | 7.15 Lt |
| Minimum idle speed | 600 min-1 |
| Max. rated speed | 2300 rpm |
| Engine fuel consumption | 193 g/kWh |
| Weight | 2100 kg |
| Moving | 7150cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 3200 x 1100 x 2000 mm |
General specifications for silent generator:
- Modular design
- Anti-Corrosion powder coated
- Insulated with acoustic foam lining
- Central lifting ring, exhaust pipe can be removed, which is easy to transport
- Lockable doors with key
- Protective mesh for rotating parts
- Exterior emergency stop push button
- Thermally insulated engine exhaust system
- Doors fitted on each side
- Panel observing window
- Access to the radiator fill or cap
- 20 ', 30'or 40' container canopy is optionally
- Color is optional
- Fuel gauge or lube drain valve is optional
- Normal or super soundproof canopy is optional
- Base frame fuel tank or profile fuel tank is optional
- The muffler fixed position depend on the output power of the gen-set
- With specially treated steel sheet
- Stainless steel locks
- Control panel viewing window for monitoring the status of the generator set
- Good ventilation system and anti-heat radiation saturation
- Effective anti-vibration devices to ensure generator driven steadily
- Super silent materials inside to ensure the noise lower than 68 dB 7 meters away
- Emergency stop button mounted outside
- Side lockable door easy for maintenance and installation
- Lube oil and cooling water drain pipe to the exterior of the canopy
- Fuel tank built with level indicator
| Standard equipment |
Other configurations |
- low oil pressure - low fuel level - battery charging error |
|
| Accessories | |
|
Engine:
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Water Cooled Diesel Engine
- Fully welded heavy duty base frame & tank.
- Engine liquid spill containment area.
- 500 hour service intervals
- Remote Start - Genset Controller,
- 415 Volt Circuit Breaker.
- Mecc Alte Alternator
- 300 % - Alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator 12 V or 24 V
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
Greenpower AB reserves the right to make any errors or changes in specifications. © Copyright / Greenpower AB.
