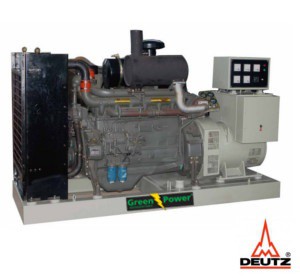

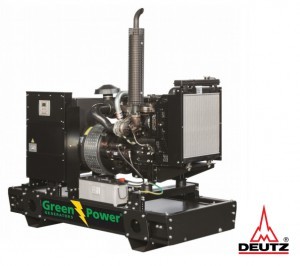

GREENPOWER DEUTZ Diesel Power generator 130kVA 104kW Open frame Manual starting
ELVERK GreenPower med vattenkyld dieselmotor av märket Deutz. Levereras med stabilt ramverk och Green Power elektropanel, voltmätare, frekvensmätare, amperemätare, tim-mätare, startnyckel och indikationspanel för olja, batteriladdning och låg bränslenivå.
Som tillval levererar vi även tystade versionen.
Som tillval levererar vi även tystade versionen.
ELVERK GREENPOWER
- Prime running power (PRP) 130kVA, 104kW.
- Emergency stand by power (ESP) 143kVA, 114kW .
- 400 / 230 V @ 50 Hz 1500 rpm.
- Hög kvalitet och pålitlig 4-cylindrig Deutz dieselmotor
- Lättmanövrerad kontrollpanel.
- Borstlös permanent magnetiserad generator IP22 med tillval elektronisk AVR.
- Bränsletank 250liter med läckageskydd
» Engine BF4M1013FC Reference Guide
| Technical Data | |
| Generator Engine | BF4M 1013 FC |
| Type | Water cooled 4 stroke, 1500 rpm diesel engine |
| Number of Cylinder | 4, in Line |
| Prime running power (PRP) | 130kVA/ 104 kW |
| Emergency stand by power (ESP) | 143kVA/114kW |
| Cylinder arrangement | in-line |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 108/130 mm |
| Displacement | 4.76 Lt |
| Fuel tank | 250 liters |
| Engine output | 153.8 / 113 (hp / kW) |
| 75% fuel consumption | 20.3 (l / h) |
| Rated current | 250 A |
| Minimum idle speed | 650 min-1 |
| Max. rated speed | 2300 rpm |
| Engine fuel consumption | 28 @ F/L |
| Weight | 1740 kg |
| Moving | 4764cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2400 x 1100 x 2000 mm |
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz - Water Cooled Diesel Engine
- Fully welded heavy duty base frame & tank.
- Engine liquid spill containment area.
- 500 hour service intervals
- Remote Start - Genset Controller,
- 415 Volt Circuit Breaker.
- Mecc Alte Alternator
- 300 % - Alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator 12 V or 24 V
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
