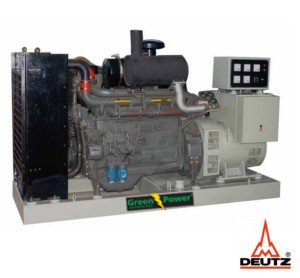

GREENPOWER DEUTZ Diesel Power generator 100kVA 80kW Open frame Manual starting
ELVERK GreenPower med vattenkyld dieselmotor av märket Deutz. Levereras med stabilt ramverk och Green Power elektropanel, voltmätare, frekvensmätare, amperemätare, tim-mätare, startnyckel och indikationspanel för olja, batteriladdning och låg bränslenivå.
Som tillval levererar vi även tystade versionen.
Som tillval levererar vi även tystade versionen.
ELVERK GREENPOWER
- Prime running power (PRP) 100kVA, 80kW.
- Emergency stand by power (ESP) 110kVA, 88kW.
- 400 / 230 V @ 50 Hz 1500 rpm.
- Hög kvalitet och pålitlig 4-cylindrig Deutz dieselmotor
- Lättmanövrerad kontrollpanel.
- Borstlös permanent magnetiserad generator IP22 med tillval elektronisk AVR.
- Bränsletank 120liter med läckageskydd
» Engine BF4M1013EC Reference Guide
» Click here to see Datasheet
| Technical Data |
|
| Generator Engine | BF4M1013EC |
| Type | Water-cooled, 4 stroke diesel engine |
| Number of Cylinder | 4, in Line |
| Cylinder arrangement | in-line |
| Prime running power (PRP) | 100kVA/ 80 kW |
| Emergency stand by power (ESP) | 110kVA/88kW |
| Rated Voltage | 400V/230V |
| Speed | 1500 rpm |
| Bore/Stroke | 108/130 mm |
| Displacement | 4.76 Lt |
| Fuel tank | 120 liters |
| Engine power | 124.4 / 93 (hp / kW) |
| 75% fuel consumption | 16.5 (l / h) |
| Rated current | 160 A |
| Minimum idle speed | 650 min-1 |
| Max. rated speed | 2300 rpm |
| Specific fuel consumption | 225 g/kWh |
| Weight | 1300 kg |
| Moving | 4764cc |
| Noise level | 69dB (A) |
| Frequency | 50Hz |
| Dimensions (L x B x H) | 2100 x 1000 x 1800 mm |
| Standard equipment |
Other configurations |
| • Circuit breakers • Voltage meter • Ampere meter • Frequency meter • Hour meter • Emergency stop button • Safety device in the engine for: - high water temperature - low oil pressure - low fuel level - battery charging error |
• Models with different voltage • 60 Hz version |
| Accessories | |
|
Engine:
- Integrated oil cooling
- Overhead valve
- The two compression and one oil scraper ring (per cylinder)
- Full-flow oil filter cartridge type
- Fuel filter cartridge type
- Electric starter 12V
- Exhaust silencer
- Original Deutz – Water Cooled Diesel Engine
- Fully welded heavy duty base frame & tank.
- Engine liquid spill containment area.
- Fork lift access,
- Simple remote start Genset controller,
- 415 volt Circuit Breaker.
- Original Mecc Alte alternator
- High alternator motor starting capacity.
- Eng/Alt wiring is simple & color coded.
- Circuit breakers in control wiring
- Eng/Alt/Controller manuals included
Alternator:
- Three-phase alternator 12 V or 24 V
- Replaceable cartridge
- Optional connection for cab heating
- Close voltage regulation
- Standard degree of protection IP 22
