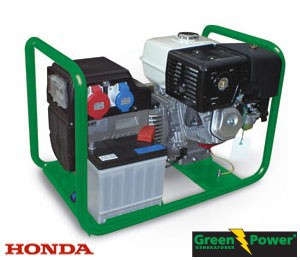

Genset 3.8kVA 3.4kW Single phase Manual Start
- Honda heavy duty Petrol engine
- Air cooled, 4 stroke horizontal engine
- Automatic decompression for easy starting
- Heavy duty ball bearing supported crankshaft
- Double walled heavy duty tank with in tank fuel strainer
- Oil alert technology
- Honda Engine Manual
| Technical Data | |
|
Generator Engine |
Honda GX 200 |
| Type | Air cooled 4-stroke OHV petrol engine, Engine type 25° inclined cylinder, horizontal shaft, cast iron sleeve |
| No. Cylinders |
1 |
| Displacement |
196 cm3 |
| Compression ratio | 8.5:1 |
| Bore x Stroke |
68 x 54 mm |
| Prime power |
3.8 kVA/ 3.4 KW |
|
Stand-by power |
4.4 kVA/4 KW |
|
Speed |
3000 rpm |
| Max. net torque |
12.4 Nm / 1.26 kgfm / 2 500 rpm |
| Ignition system |
Transistorised |
| Starting System | Recoil Starter (electric start optional) |
|
Landuse Type of Unit |
Low Noise, Automation Type |
|
Fuel. cons at cont. rated power |
1.1 L/hr |
| Engine oil capacity | 0.6 l |
| Fuel tank Capacity | 3.6 l |
|
Dimensions (LxWxH) |
580 x 410 x 410 mm |
| Weight (dry) | 38 Kg |
GreenPower generators equipped with gasoline engine from Honda. The units are especially produced for settlements, mobile installations, camping sites, hobby use etc.
Delivered in 1-phase 230 volts, 50 Hz.
GreenPower electrical panel, generator and MCB.
Manual or Electrical start function.
| Standard equipment | Accessories |
| • Handstart, Electrical start (optional) • Indicator, work time |
• Mobile wagon |
| Other configurations | |
| • Models with different voltage • 60 Hz version • Automatical start |
Engine Features
- Fuel Efficient, High Output Operation
- Smooth Performance
- Exceptionally Quiet
- Proven Reliability
- Easy to Use and Maintain
- Easy Starting
- Emissions Compliant
» Click Here to view the Engine Datasheet
Available Options
- Low profile versions
- Gear reduction options
- Electic start
- Spark arrester available
- Charge and lamp coils with multiple output options available
- Cyclone Air Cleaner available
- Brushless, single bearing system, 2 poles
- Insulation class H with circuit breaker protection
- Standard degree of protection IP 22
- Self-exciting and self-regulating
- Screen protected and drip proof
- Close voltage regulation
