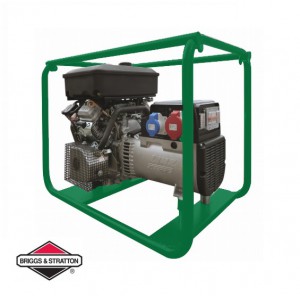

Briggs and Stratton generator 12kVA 10kW 1-phase 230V electric start with battery




Briggs & Stratton 12kVA 10kW 1-phase 230V electric start with battery

greenpower

Standard Genset Specifications

  • Briggs & Stratton 18hp Vanguard V-Twin OHV engine
  • Air-cooled, 4-stroke horizontal engine
  • Automatic decompression for easy start
  • Heavy-duty ball bearing supported crankshaft
  • Fuel tank 8.5l with fuel strainer
  • Oil warning system
  • Briggs & Stratton Motor

» Click here to see Engine Datasheet

Technical Data

Engine model

Briggs & Stratton 18hp

Type Air cooled 4-stroke
Gasoline engine
Displacement

570 cm3

Number of Cylinders 2
Bore x Stroke

68 x 66 mm

Prime running power (PRP) 12 kVA/10 kW

Emergency stand by power (ESP)

13,2 kVA/10,5 kW

Speed

3000 rpm

Engine power 18/13.2 (hp/kw)
Fuel. cons at cont. rated power 4.3 Lt/hr
Starting System Recoil/electric start

Oil volume

1.7 lt

Rated voltage

230V

Dimensions (LxWxH) 860 x 550 x 650 mm
Weight 111/125 Kg



GreenPower generators equipped with gasoline engine from Briggs and Straton. The units are made especially for housing, mobile installations, campsites and rentals etc.

Delivered in 1-phase 230 volts, 50 Hz.
GreenPower electrical panel, generator and circuit breaker.
Electrical start function.

 Standard equipment  Accessories
Meter, running time
AVR Electronic regulation

Removable trolley

 Other configurations
 Models with different voltage
60 Hz version




Engine Features

  • Fuel efficient, high output operation
  • Smooth performance
  • Exceptionally quiet
  • Proven reliability
  • Easy to use and maintain
  • Emissions compatible

    Available Options

    • Low profile versions
    • Gear reduction options
    • Spark arrester available
    • Charge and lamp coils with multiple output options available
    • Cyclone air cleaner available
      Alternator
    • Brushless, single support system, 2 poles
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 23
    • Self regulating and adjusting
    • Screen protected and drip proof
    • Close voltage regulation
    • Briggs and Stratton generator 12kVA 10kW 1-phase 230V electric start with battery
      Art. nr.
      GP12BSE
      Briggs and Stratton generator 12kVA 10kW 1-phase 230V electric start with battery
      2 740.00 EUR
      2 740.00 EUR
      EUR
