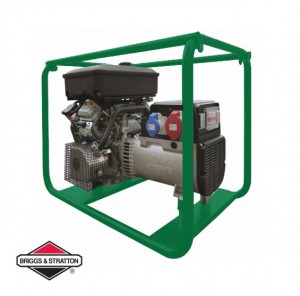

Briggs and Stratton generator 10kVA 8kW Three phase 400V electric start with battery




Briggs and Stratton generator 10kVA 8kW Three phase 400V electric start with battery

greenpower

Standard Genset Specifications

  • Briggs & Stratton 16hp Vanguard V-Twin OHV engine
  • Air-cooled, 4-stroke horizontal engine
  • Automatic decompression for easy start
  • Heavy-duty ball bearing supported crankshaft
  • Fuel tank 8.5lit with fuel strainer
  • Oil warning system
  • Briggs & Stratton Motor
» Click here to see Engine Datasheet

Technical Data

Engine model

Briggs & Stratton 16hp

Type Air cooled 4-stroke
Gasoline engine
Displacement

480 cm3

Number of Cylinders 2
Bore x Stroke

68 x 66 mm

Prime running power (PRP) 10 kVA/8 KW

Emergency stand by power (ESP)

11 kVA/8.8 KW

Speed

3000 rpm

Engine power 16/11.8 (hp/kw)
Fuel. cons at cont. rated power 3.8 Lt/hr
Starting System Recoil/electric start

Oil volume

1.7 lt

Rated voltage

400V

Dimensions (LxWxH) 860 x 550 x 650 mm
Weight 97/115 Kg



GreenPower generators equipped with gasoline engine from Briggs and Straton. The units are especially produced for settlements, mobile installations, camping sites, hobby use etc.

Delivered in 3-phase 400 volts, 50 Hz.
GreenPower electrical panel, generator and circuit breaker.
Electrical start function.

 Standard equipment  Accessories
Meter, running time
AVR Electronic regulation

Removable trolley

 Other configurations
 Models with different voltage
60 Hz version




Engine Features

  • Fuel efficient, high output operation
  • Smooth performance
  • Exceptionally quiet
  • Proven reliability
  • Easy to use and maintain
  • Emissions compatible

    Available Options

    • Low profile versions
    • Gear reduction options
    • Spark arrester available
    • Charge and lamp coils with multiple output options available
    • Cyclone air cleaner available
      Alternator
    • Brushless, 2 poles
    • Insulation class H with circuit breaker protection
    • Standard degree of protection IP 23
    • Self Adjusting
    • Screen protected and drip proof
    • Close voltage regulation
    • Briggs and Stratton generator 10kVA 8kW Three phase 400V electric start with battery
      Art. nr.
      GPS10BE
      Briggs and Stratton generator 10kVA 8kW Three phase 400V electric start with battery
      2 645.00 EUR
      2 645.00 EUR
